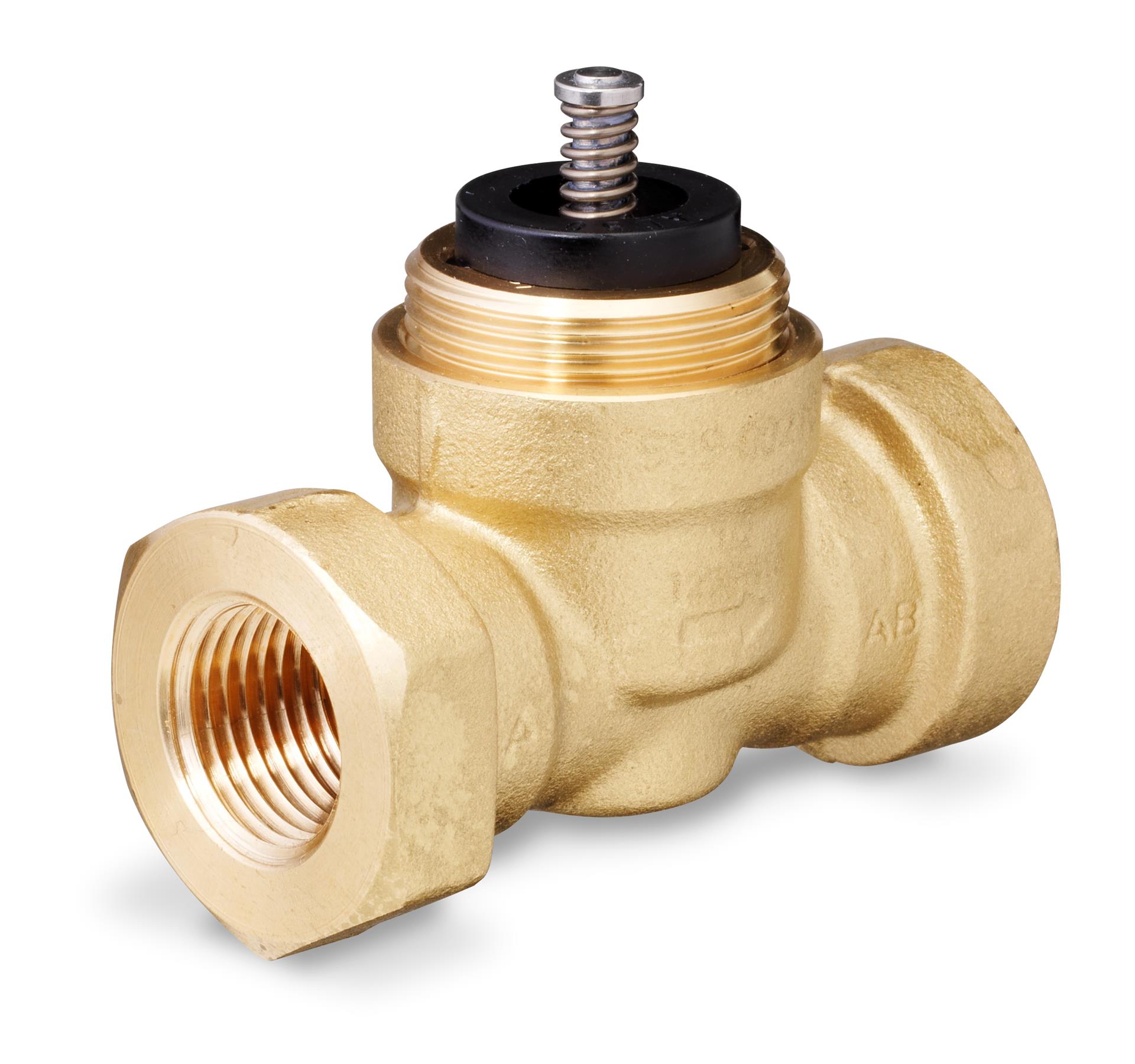

Siemens 599-00210 2-and-3-Way Zone Valves,
Two- and Three-Way Zone Valves have a 1/10-inch (2.5 mm) stroke.
The Zone Valves work with any SFA/SFP Series or SSE/SSF Series electric actuator.
The actuators accept one of either 24 Vac or 120 Vac power supply signal to provide on/off,
floating or 0 to10 Vdc control.
Features
● All metal plug and seat for superior control
● Direct-coupled universal bonnet – install actuators
without tools
● NPT end connection
● Order separately or with an actuator as a
complete assembly
Applications
Typical applications for Two- and Three-Way Zone Valves
are hot or chilled water for zones with radiators; floor
heating via manifolds; fan coil units; cooling ceilings;
wall-mounted boilers; and VAV applications.
Recommendation:
Use only with Zone Valve Actuators.
