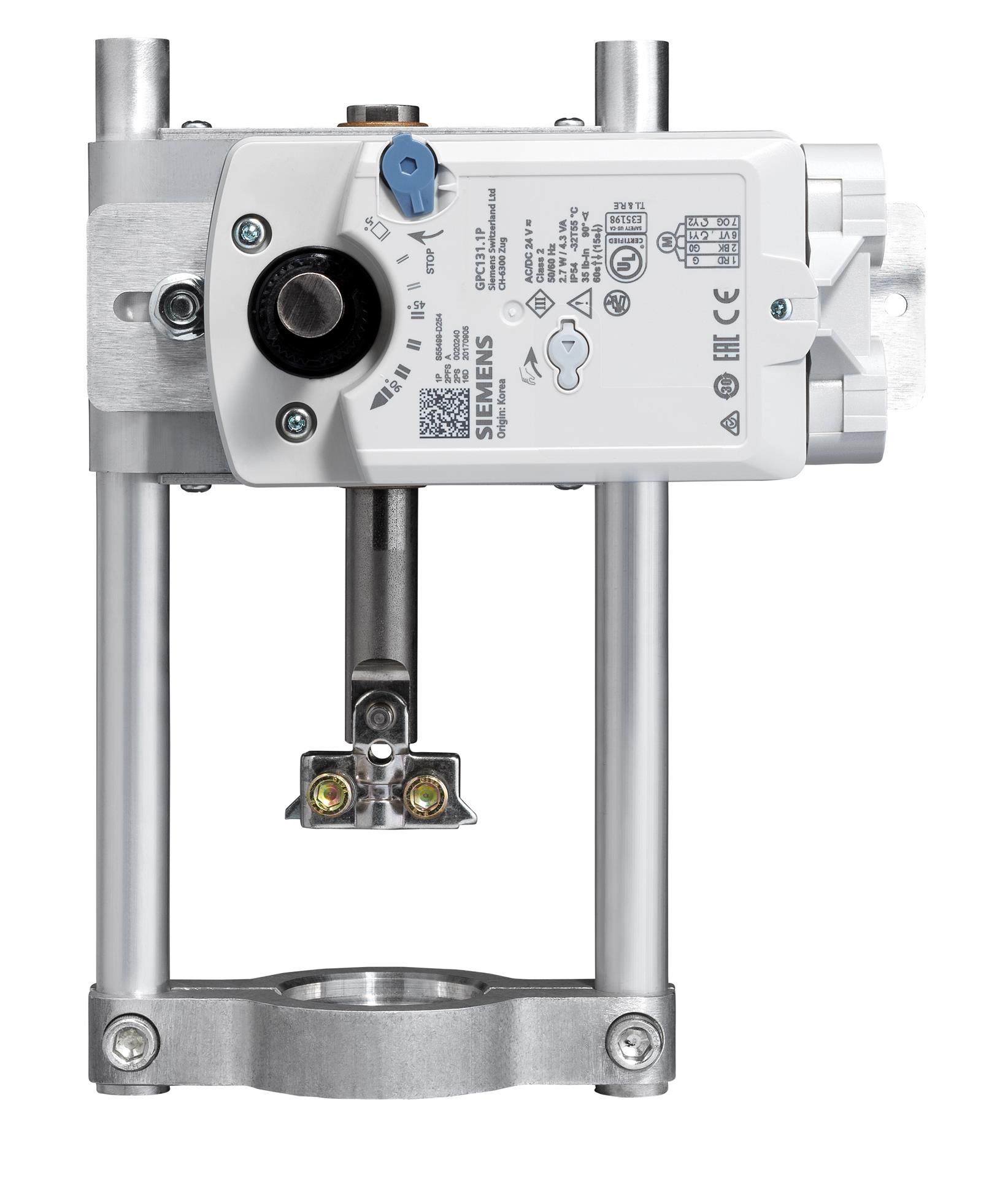

Siemens 599-03617NO Pressure Independent Control Series Rack & Pinion Actuator

Siemens 599-03617NO Pressure Independent Control Series Rack & Pinion Actuator,
couples a GPC Actuator to a 1-1/2- or 2-inch
Pressure Independent Control Series two-way valve using
a linkage. The linkage transforms the actuator rotary
movement into the linear motion required to position the
valve.
Features
● Bi-directional fail-safe spring return
● Orderable as direct (Normally Open) or reverse
(Normally Closed) acting
● Brushless DC motor technology with stall protection
● Pre-cabled
● Plenum-rated
● 60-second run time
● Integrated 1/2-inch NPT conduit connection
● Modulating control signal selectable 0 to 10V or 2 to 10V
● Modulating actuator has 0(2) to 10 Vdc feedback
Rack & Pinion Actuator
Applications
The Pressure Independent Control Series valves are used
to control water and glycol solutions to 50 percent in small
to large air handling units and central plant applications.

599-03617NO
599-03617NC
599-03615
