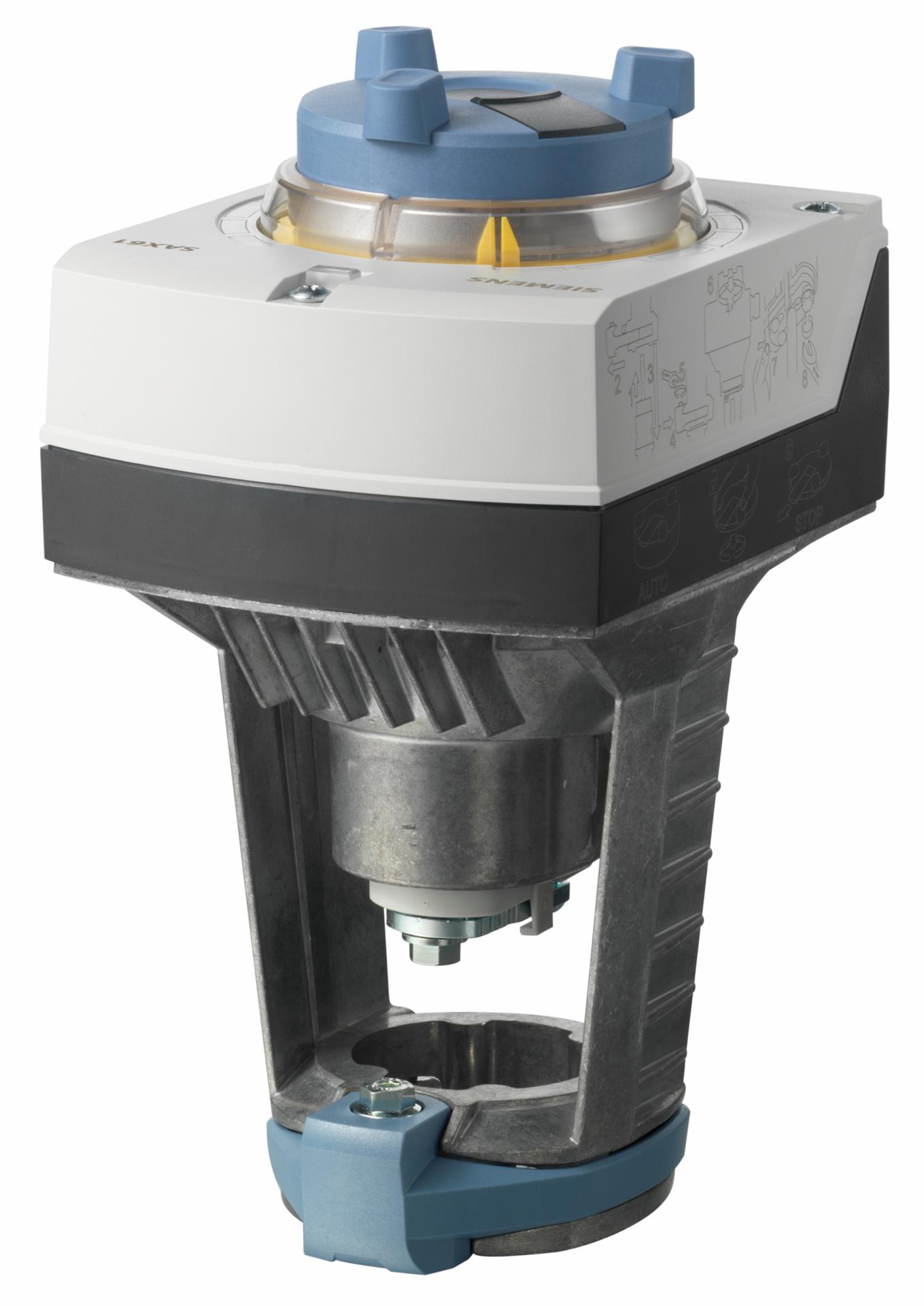

Siemens S55150-A142 SAX61.03/HR and SAV61.00/HR Valve Actuators,
Designed for use with Siemens 2-1/2 to 5-inch flanged
Intelligent Valves. These SAX and SAV Electronic
Actuators are powered by the Intelligent Valve controller
and requires either a 24 Vac or 24 Vdc supply, and
receives a 0 to 10 Vdc or 4 to 20 mA control signal to
proportionally control the valve.
Features
● 24 Vac/dc operating voltage
● Direct-coupled installation requires no special tools
or adjustments
● Manual override
● Overload and stall protection
● Visual stroke indication
● Non-spring return (fail-in-place)
● Automatic stroke calibration
● LED status
● Electronic stroke indication
● Maintenance-free
Applications
Typical applications include control of hot or chilled
water in closed loop systems. They are ideal for
installations requiring quick response and excellent
resolution.
