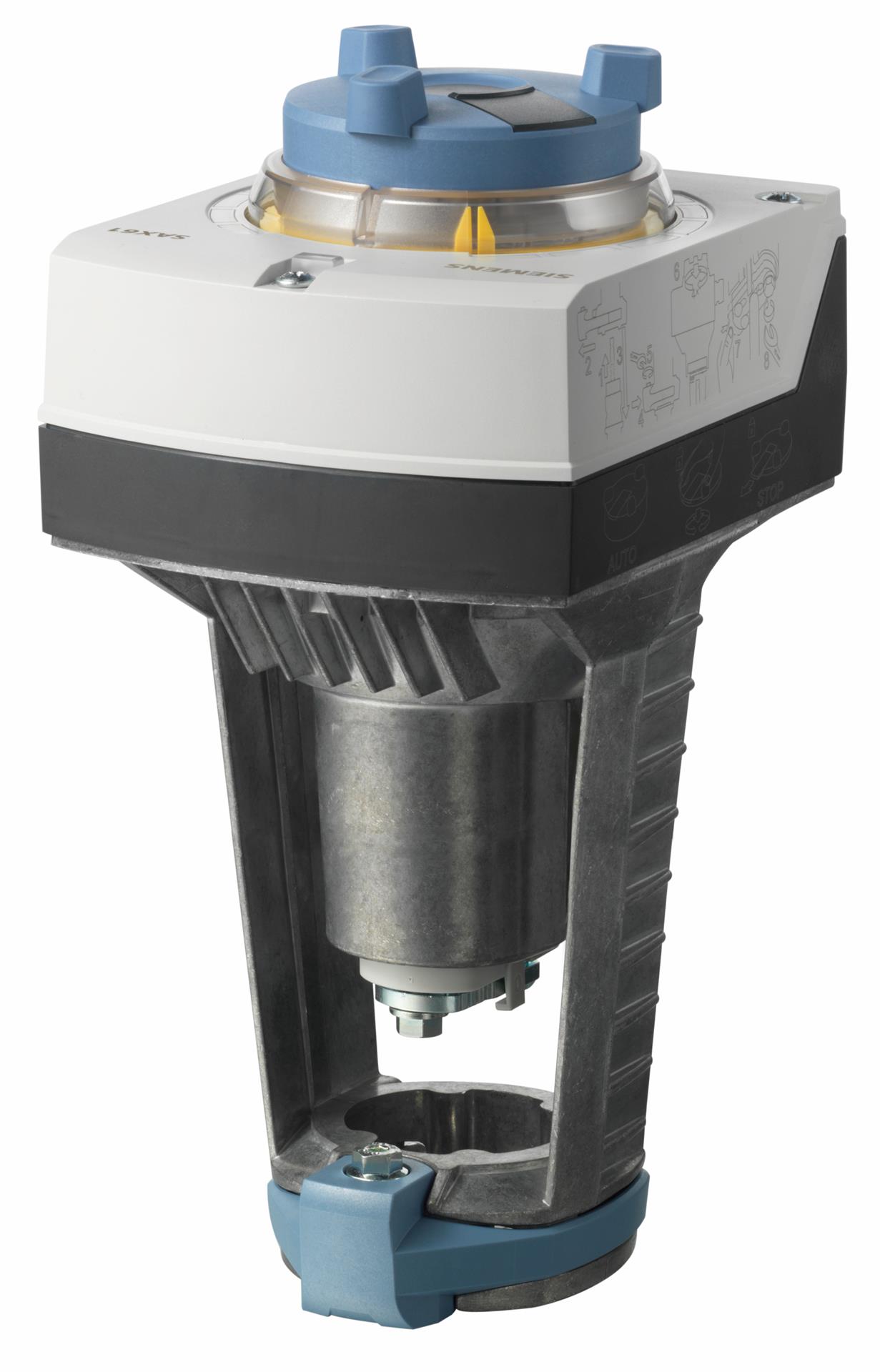

Siemens SAV61.00U Valve Actuator PICV Proportional Control Non-Spring Return,
The SAV Non-spring Return (NSR) Electronic Valve Actuator requires a 24 Vac/dc supply.
To proportionally control a valve,
the actuator requires a 0 to 10 Vdc or a 4 to 20 mA control signal.
SAV actuators are designed to work,
with Siemens 4 to 6-inch Flanged Pressure Independent Control Valves,
with a 1-1/2-inch (40 mm)stroke.
Applications
Typical applications include control of hot or chilled
water or water-glycol solutions up to 50% in closed
loop systems. They are ideal for installations requiring
quick response and excellent resolution.
