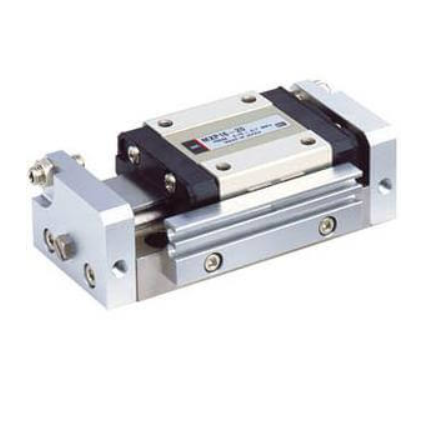

SMC 11/22-MXP High Precision Slide Table Recirculating Bearings Clean Room Copper Fluorine Silicone free Series,
The 11/22-MXP clean room, high precision slide tables have travelling parallelism,
of 0.004 mm for all its bore sizes and non-rotating accuracy +/-0.03° for 6 ,
and 10 mm bore sizes and non-rotating accuracy +/-0.04° for 12 and 16 mm bore sizes.
Its actuator body and guide block made from Martensitic stainless steel for high rigidity ,
therefore and integrated to guide rails for isolating the load bearing from the movement of the piston rod,
MOREEVER and seals.A vacuum relief port been adde to suction any particles so no dust can be released into the clean room.
A dust cap over the piston end cap further prevents dust generation.
*A special PTFE grease been applie to 11-MXP’s linear guide and piston to inhibit dust generation.
**A special lithium grease been applie to 22-MXP’s linear guide and piston to inhibit dust generation.
For 22-MXP, additionally, copper is not use as a product material as well as substances including halogen (fluorine, chlorine, bromine and iodine) or compounde with silicon are not used.
- Bore sizes: 6, 10, 12, 16 mm
- Non-rotating accuracy +/-0.03° for 10 mm bore
- Non-rotating accuracy +/-0.04° for 12, 16 mm bore
- Stroke adjuster options: rubber, metal stopper or shock absorber
- PTFE grease used in Clean Room Series
- Lithium grease used in Copper, Fluorine, Silicone-free Series
- RoHS compliant
- Auto switch capable
