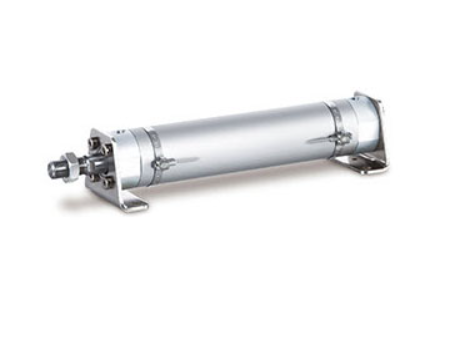

SMC CG1-Z1 Round Body Cylinder,
Series CG1-Z precision air cylinder has 8 bore sizes and can meet any application need.
The tube is impact extruded aluminum to produce an extraordinarily smooth finish,
allow low break-away pressure and smooth stroke action.
Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable.
- Bore sizes: ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100
- Double acting, single rod
- Operating pressure: 0.05~1.0MPa
- Operating temperature: -10~70°C (without auto-switch)
