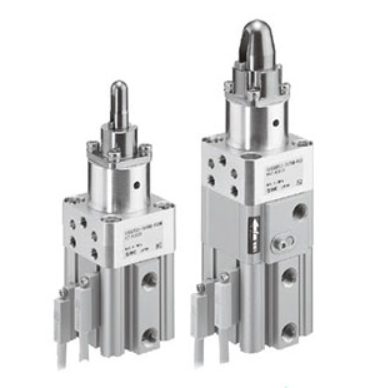

SMC C(L)KQG*-X3036 Pin Clamp Cylinder Compact Type,
SMC’s pin clamp plate type cylinder with mounting for smaller auto switches,
series C(L)KG was designed with 4 body types for a broad range of installation conditions.
There are 60 diameters of guide pins available and an optional guide pin shape.
- Lightweight: 41% reduction (900 g → 530 g)
- Overall Length: 41.5mm shorter (183mm → 141.5mm)
- Body width: 4mm shorter (50mm → 46mm)
- Lock mechanism to prevent the dropping of workpieces during emergency stops
- Round type and diamond type guide pins for workpieces with ø8 to ø20
- Easy arm replacement
