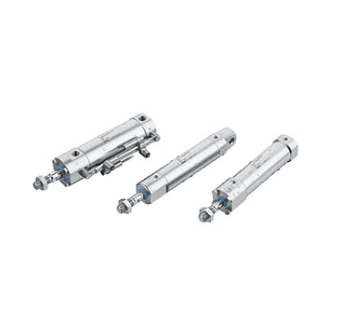

SMC HF2A-CG5 Stainless Steel Cylinder Non-Adjustable Air Cushion,
For Food Manufacturing and Process Application.
The HF2A-CG5 series features all stainless-steel external components (SUS304), ensuring excellent resistance to corrosion and wear from frequent washdowns and exposure to cleaning fluids.
HF2A-CG5 features a clean design, enhanced scraper (material: blue FKM), lube retainer, NSF-H1 grease and mounting interchangeability with current CG5 series. Its enhanced construction delivers 4 times better durability in environments where water droplets and moisture are a constant presence. HF2A-CG5 also features non-adjustable air cushion providing smooth stopping at the end of stroke and remove the need to adjust air cushion.
- Double Acting, Single Rod All Stainless Steel Cylinder
- Bore Size: 20, 25, 32, 40
- Mounting interchangeable with CG5-S series
- 4x better durability in environments with water droplet exposure
- Non-Adjustable Air Cushion for consistent end-of-stroke operation
- Switch Rail need to be ordered separately. Please refer to the catalog
