SMC HYG Hygienic Cylinder with Guide Rods

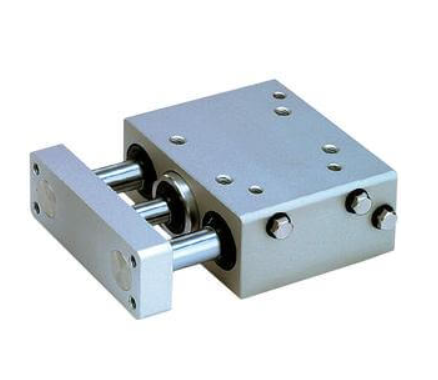

SMC HYG Hygienic Cylinder with Guide Rods

Add to wishlist
Category: Terminals & Bars
Brand: SMC
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • 2702905 / FL SWITCH 2214-2FX Phoenix Contact Managed Switch 2000 series, 14 RJ45 ports 10/100 Mbps, 2 SC multi-mode 100 Mbps, degree of protection

    2702905 / FL SWITCH 2214-2FX Phoenix Contact Managed Switch 2000 series, 14 RJ45 ports 10/100 Mbps, 2 SC multi-mode 100 Mbps, degree of protection

  • Placeholder

    2988544 / VISU+ 2 phoenix contact Development license for Visu+ projects.

  • WEIDMULLER SPGTB 2.5 FT 2C/1 Pluggable terminal 3051460000

    WEIDMULLER SPGTB 2.5 FT 2C/1 Pluggable terminal 3051460000

  • SMC JSY Manifold Compact Wireless Remote

    SMC JSY Manifold Compact Wireless Remote

  • Dwyer Series ISDP Intrinsically Safe Differential Pressure Transmitter

    Dwyer Series ISDP Intrinsically Safe Differential Pressure Transmitter

  • CHINT NH4 Switch Disconnector

    CHINT NH4 Switch Disconnector

Description
Shipping & delivery

SMC HYG Hygienic Cylinder with Guide Rods,

The HYG integrates an aluminum hygienic body with guide rods that are completely recessed in the body and protected by grease retention rod scrapers for unprecedented water resistance during wash down processes. The HYG has eliminated switch grooves in favor of rail mounted auto-switches to prevent water pools. Plug bolts are required to plug unused ports and mounting holes to assure water resistance; air purge ports for the guide rods remain unplugged. NSF-H1 food grade grease option is available.

  • Bore sizes: 20, 25, 32, 40, 50, 63 mm
  • Stroke lengths (20, 25 bore): 20, 30, 40, 100, 150, 200 mm
  • Stroke lengths (32, 40, 50, 63 bore): 25, 50, 100, 150, 200 mm
  • FKM, fluoropolymer seal option
  • NSF-H1 food grade grease option
  • Auto switch capable
