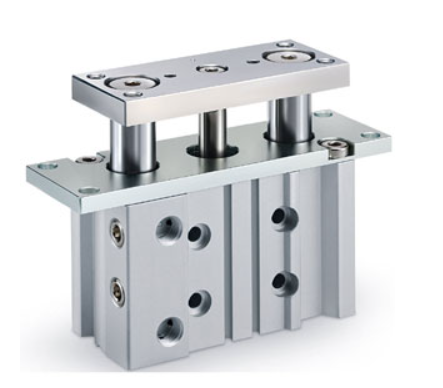

SMC MGPAF-Z High Precision Guided Cylinder with Flange Ball Bushing Bearing,
The MGPAF-Z is a compact body actuator integrate,
with internal guide shafts to isolate the load bearing from the movement of the actuator’s rod and seals.
The press fitted high precision ball bushing results in a non-rotating accuracy of +/-0.01° across all bore sizes. It is available with a plate side flange.
- Bore size: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)
- Strokes: 10mm through 400mm, depending upon bore size
- High precision ball bushing bearing type
- Auto switch capable
- Available with plate side flange
