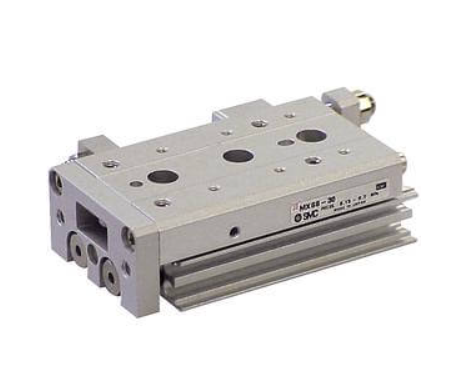

SMC MXS Precision Slide Table Cross Roller Bearings Standard Type

SMC MXS Precision Slide Table Cross Roller Bearings Standard Type,

The MXS is a precision slide table integrated with guides and rails combine,
with cross roller bearings to isolate the load bearing from the movement of the dual rods .
and piston seals. Rubber bumpers or shock absorbers stop the slide table,
and can be paire with a stroke adjuster for precise positioning; available for extend, retract,
or both ends in ranges of 0-5 mm, 0-15 mm and 0-25 mm.
The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.

• Bore sizes: 6, 8, 12, 16, 20, 25 mm
• Rubber bumper with stroke adjuster
• Shock absorber option
• End lock option in the event of air pressure loss
• PTFE grease or food grade grease option
• RoHS compliant
• Auto switch capable
