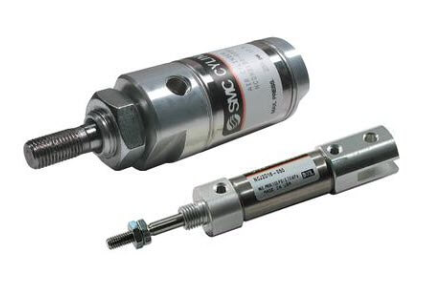

SMC NC(D)M-XE* Stainless Steel Cylinder Double Acting Rod Extension Option,
Series NCM stainless steel cylinder offers space savings, high performance,
and interchangeability with other stainless steel cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 4 mounting styles (front nose, double end, rear pivot,
and block mount) as well as double rod and spring return or spring extend models.
The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16″ to 2″ and standard strokes from 1/2″ to 12″.
- Double acting single rod with XE* rod extension option
- Rod extension is in 1/8″ increments
- Bore sizes (inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- Mounts: nose, rear, end, rod, block
- Variety of switches and lead wire lengths
- XE Rod Extension [1 – 316] (1/8″ increments, 1 = 1/8″, 8 = 1″, 16 = 2″)
