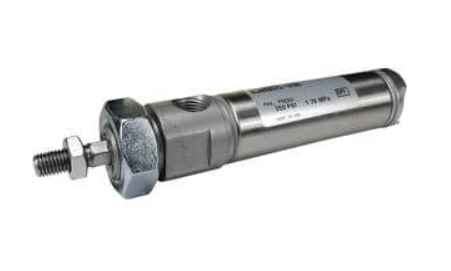

SMC NC(D)MK Stainless Steel Cylinder Non-Rotating Double Acting Single Rod,
Standard double acting single non-rotating piston rod version of our NCM stainless steel cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 3 mounting styles (front nose, double end and rear pivot).
The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 3/4″ to 1 1/2″ and standard strokes from 1/2″ to 12″.
- Non rotating, air cylinder
- Stainless steel body
- Bore sizes-3/4″ to 1 1/2″
- 3 mountings types available
- Auto switch capable
