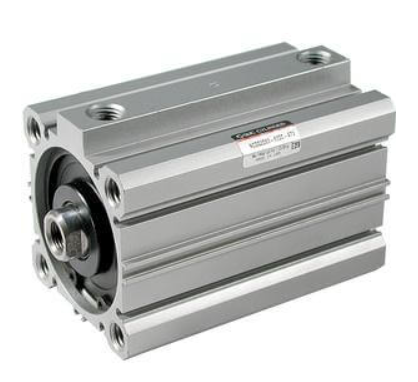

SMC NC(D)Q2-Z Compact Cylinder Double Acting Single Rod Temperature Resistant,
The NCQ2 compact cylinder is the inch version of the world’s best selling pneumatic cylinder and can be supported globally.
The NCQ2 is available in 13 bore sizes from 12mm to 160mm. It comes standard with male or female piston rod threads.
A large variety of standard options make it one of the most versatile cylinder series on the market. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting single rod
- XB6 and XB7 bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- XB14 bore sizes (mm): 16, 20, 25, 32, 40, 50, 63
- Mounting include: Through hole (standard), threaded, clevis, foot, head flange, and rod flange
- Low temperature option (XB7) temperature range -40°F to 158°F
- High temperature option (XB6) temperature range 10°F to 302°F
- Heat resistant auto switch option (XB14) temperature range 0°F to 302°F
