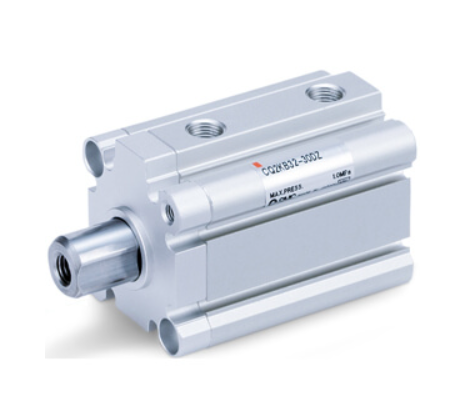

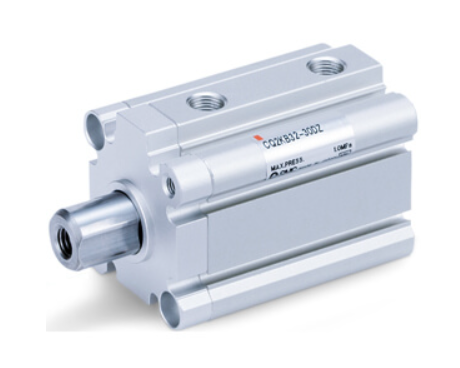

SMC NC(D)Q2K-Z Compact Double Acting Single Rod Non-rotating,
Standard double acting, single non-rotating piston rod version of the NCQ2 compact cylinder.
The NCQ2 is available in bore sizes from 12mm to 63mm.
It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod, non-rotating compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63
- Standard stroke range (mm): 5 to 100
- Mountings include: Through hole (standard), threaded, clevis, rod flange, head flange, and foot
- Auto switch capable
