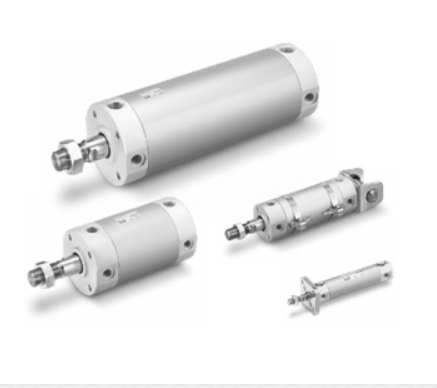

SMC NCG-Z1 Air Cylinder Standard Type Double Acting Single Rod,
The NCG series is an extremely durable, repairable round body cylinder that provides precision mounting,
furthermore short overall length, light weight and high speed. Rubber bumpers are standard with an option for adjustable air cushion.
olso Nine mounting styles are available for cylinder mounting flexibility.
moreever Bore sizes for the NCG range from 3/4″(20mm) to 2 1/2″ (63mm).
which is mean Standard available stroke lengths from 1″ to 12″ but with the ability for long strokes.
The NCG series is auto-switch capable. *The NCG is capable of speeds up to 40 in/sec. **The NCG series is available in 11 standard options to help fit into many different applications.
- Band-mounted auto switch allows easy position adjustment
- Threaded holes for trunnion style mounting
- Mounting brackets designe to withstand reaction forces from cylinder, ensuring long life
- Mounting dimensions are interchangeable with the existing mode
- Engineered piston seal resists rolling
