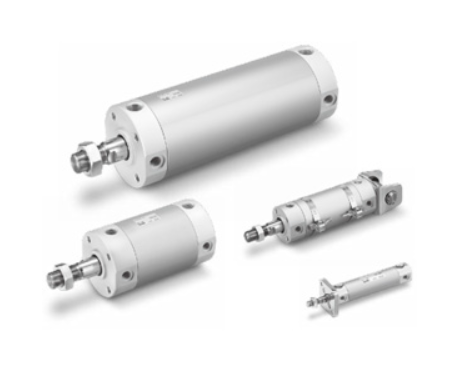

SMC NCG-Z1 Air Cylinder Standard Type Double Acting Single Rod,
The NCG series is an extremely durable, repairable round body cylinder that provides precision mounting,
furthermore short overall length, light weight and high speed. Rubber bumpers are standard with an option for adjustable air cushion.
moreover Nine mounting styles are available for cylinder mounting flexibility.
also Bore sizes for the NCG range from 3/4″(20mm) to 2 1/2″ (63mm).
therefore Standard available stroke lengths from 1″ to 12″ but with the ability for long strokes.
The NCG series is auto-switch capable. The NCG is capable of speeds up to 40 in/sec.
The NCG series is available in 11 standard options to help fit into many different applications.
- Band-mounted auto switch allows easy position adjustment
- Threaded holes for trunnion style mounting
- Mounting brackets are designe to withstand reaction forces from cylinder, ensuring long life
- Mounting dimensions are interchangeable with the existing model.∗1(∗1 Excluding Long stroke models: ø20: More than 8 inches, ø25-63: More than 12 inches)
- Engineered piston seal resists rolling
