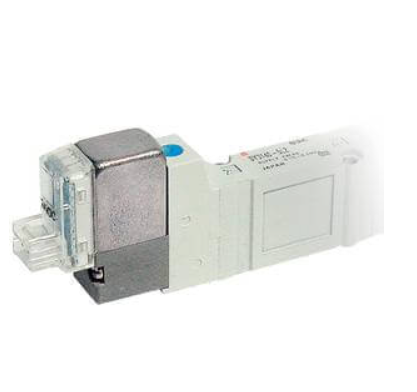

SMC SY5000 5 Port Solenoid Valve All Types Legacy,
Legacy Series SY5000 offers major advances in valve performance for cost-effective solutions to your requirements.
The series offers high flow with low power consumption in a compact design.
The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 – 0.7MPa
(external pilot) -100kPa to 0.7MPa
(external pilot, pilot pressure range) 0.25 – 0.7MPa - Effective area mm 2 (Cv): body ported 10.6 (0.59);
base mounted 12.6 (0.7) - Coil rated voltage: 3, 5, 6, 12, 24VDC;
100, 110, 200, 220VAC - Response time (0.5MPa) w/o indicator light &
surge voltage suppressor: 32ms or less - Ambient & fluid temperature: 50°C
