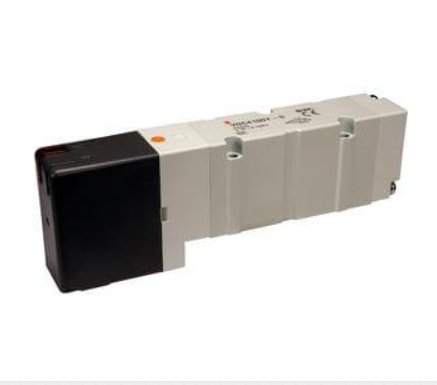

SMC VQC5000 5 Port Solenoid Valve Base Mounted Plug-in,
The VQC series has five standard wiring packages bringing a world of ease to wiring and maintenance work,
while the protective enclosures of three of them conform to IP67 standards for protection from dust and moisture.
The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration.
The VQC series has outstanding response times and long life.
- 5 port solenoid valve, base mount, plug-in
- Fluid: air/inert gas
- Operating pressure: 1.0MPa [0.7MPa (low wattage)]
- Flow rate (Cv): 3.4 Metal seal; 4.7 Rubber seal
- Coil rated voltage: 12VDC, 24VDC
- Enclosure: dust proof (conforms to IP67)
