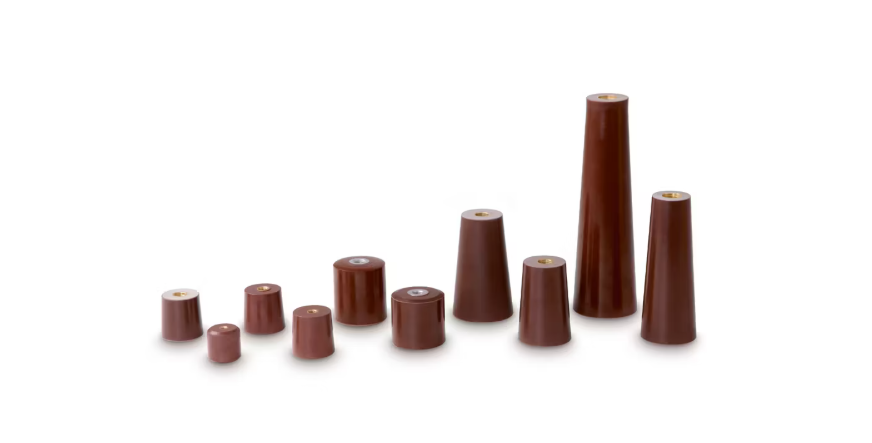

SP / SK Supporting insulators,
- Made from mineral filled Epoxy
- Casted fixing inserts
- Excellent mechanical propertie
- Creepage current resistand
- Highly chemical-resistand
Technical data
| Highest operating voltage
kV |
Test voltage
kV |
Lightning impulse withstand voltage
kV |
Cantilever load
N |
Order code |
| 1.1 | 10 | – | 2000 | SP 01/0 |
| 1.1 | 10 | – | 5000 | SP 01/1 |
| 1.1 | 10 | – | 5000 | SP 01/2 |
| 1.1 | 10 | – | 3500 | SK 01/0 |
| 1.1 | 10 | – | 7500 | SK 01/2 |
| 3.6 | 21 | 45 | 7500 | SK 03/2 |
| 7.2 | 27 | 60 | 7500 | SK 07/2 |
| 12 | 35 | 75 | 4000 | SK 12/1 |
| 24 | 55 | 125 | 4000 | SK 24/1 |
