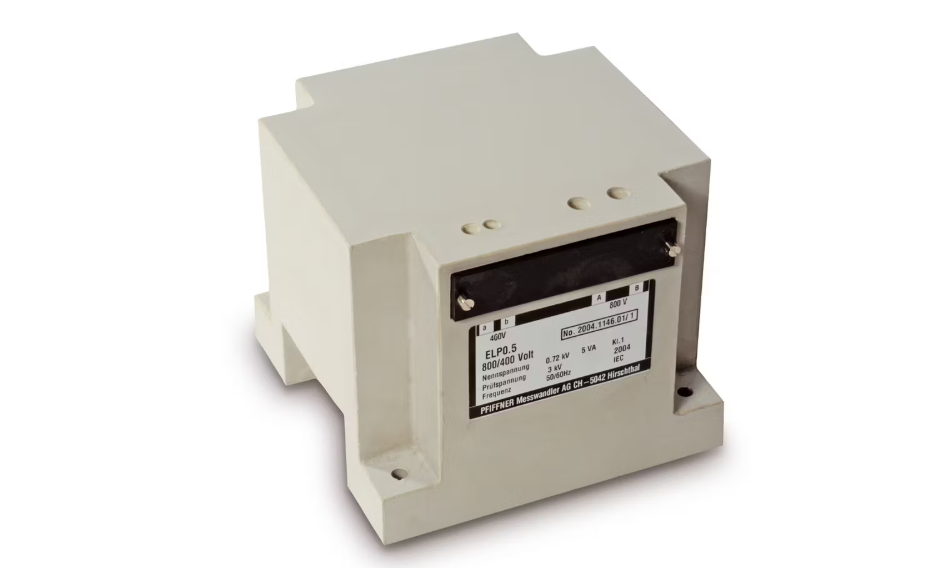

Voltage transformer ELP Indoor Operation

Voltage transformer ELP Indoor Operation

Add to wishlist
Category:
Share:

Voltage transformer ELP Indoor Operation,

  • Moulded in Polyurethane
  • Compact design
  • Tropic-proof
  • Primary & secondary windings can be executed with taps
  • Class 0.2 possible
  • Standard: IEC/EN 61869-3
  • Official calibration possible

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Primary voltage 48…720 V
Secondary voltage 7…380 V
