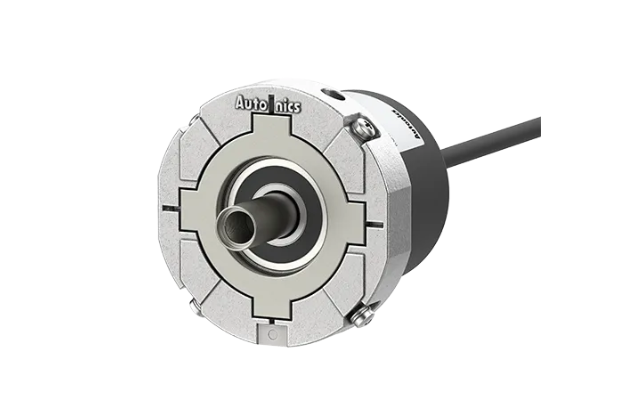

AUTONICS E58S9.25-2048-10-A-5-R,
Data sheet Print
| Shaft outer diameter | Ø9.25mm |
|---|---|
| Max. response frequency | 200kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 100gf.cm(0.0098N.m) |
| Resolution | 2048P/R |
| Output phase | A,  , B,  , Z,  , C,  , D,  |
| Control output | Analog sine wave OP Amp output |
| Power voltage | 5VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -20 to 100℃, storage: -25 to 100℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | M5×0.8 (50L), M5×0.8 (47L) wrench bolt |
| Weight | Approx. 1.02kg(approx. 930g) |
