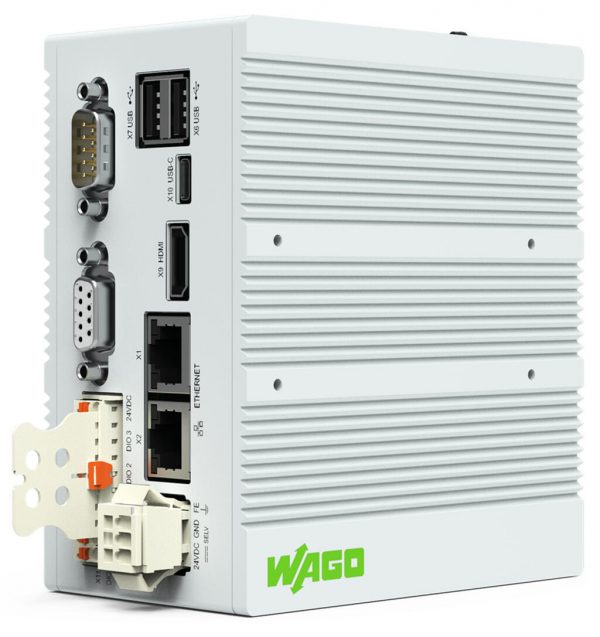

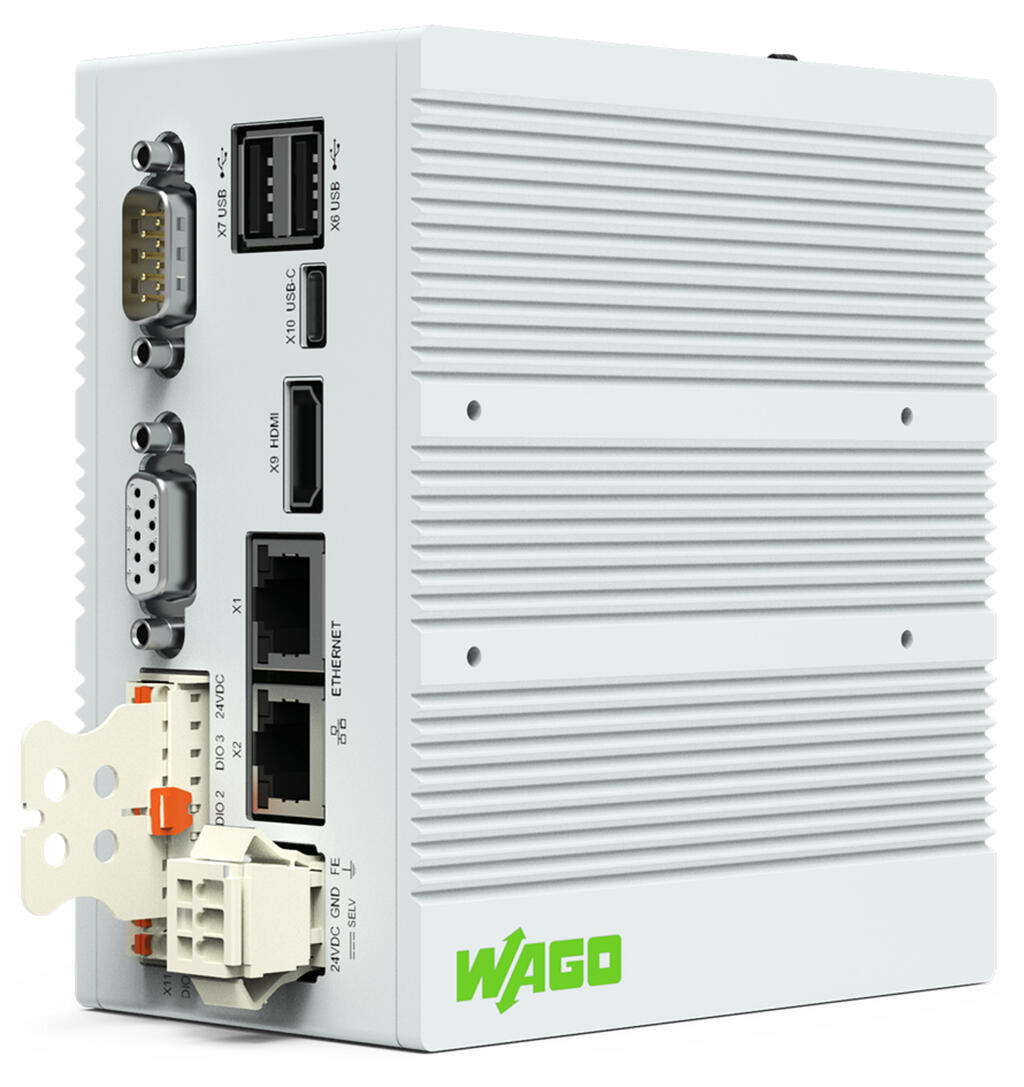

wago 752-8303/8000-002 Edge Controller; 2 x ETHERNET, 2 x USB, 1 x USB-C, HDMI, CAN, DI/DO, RS-232/485, Audio; Control
Technical data
| Communications | Web browser Web browser (HTML5) Modbus TCP master/slave Modbus (UDP), WagoAppPlcModbus Library Modbus (RTU), WagoAppPlcModbus Library ETHERNET EtherNet/IPTM Adapter (slave) EtherNet/IPTM Scanner CANopen EtherCAT® Master OPC UA Server/Client OPC UA Pub/Sub (can be installed later) MQTT RS-232 serial interface RS-485 interface BACnet/IP, requires an additional license Telecontrol protocols, requires an additional license MicroBrowser (including visualization of CODESYS V2.3), requires an additional license |
| ETHERNET protocols | DHCP DNS FTP FTPS HTTP HTTPS SSH |
| Visualization | Web-Visu Target Visu |
| Operating system | Real-time Linux (with PREEMPT_RT patch) |
| Processor | ARM® Cortex® A9 Quad-Core 1.0 GHz |
| Programming environment | CODESYS V3.5, Firmware Release 24 or higher e!COCKPIT (based on CODESYS V3) up to Firmware Release 22 |
| Transmission rate | ETHERNET: 10/100 Mbit/s; CAN: 1 MBd |
| Main memory (RAM) | 2 GB, DDR3 SDRAM |
| Internal memory (flash) | 4096MB |
| Internal memory (flash) | 4 GB, eMMC |
| Non-volatile hardware memory | 128kbyte |
| Memory expansion | microSD (max. 2 GB), microSDHC (max. 32 GB) |
| Interfaces (USB) | 2 x USB 2.0 socket, type A; 1 x USB OTG socket, type C |
| Onboard I/Os | 4 x DIO, configurable |
| Indicators | 3-color LED – red, green, blue; 4 x red/green LED |
| Supply voltage | 24 VDC, SELV (18 … 31.2 V); LPS; with reverse voltage protection |
| Input current (max.) (24 V) | 120mA |
| Operating power | 2.9 W, without USB load; 9.4 W, with USB load |
