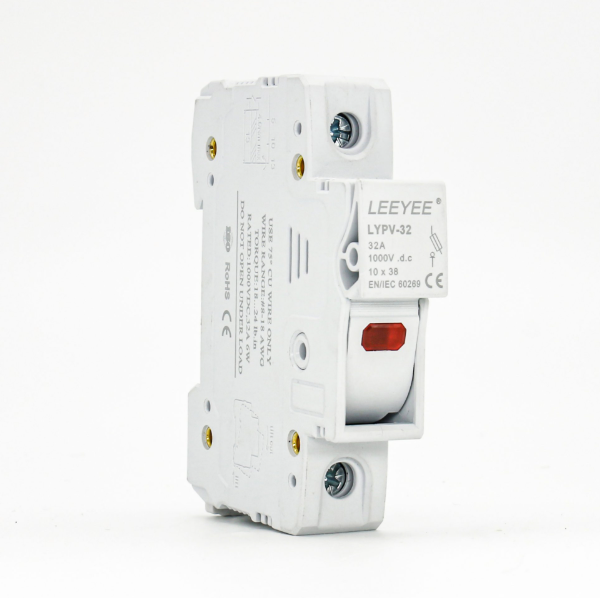

1000VDC PV Fuse Holder 32A,
Normal Working Conditions
Ambient Temperature:-40℃-﹢90℃
Equipment installation height:less than 2000m
(if you want use exceedng this height,pls tell us in advance,we can design according to yourrequirements)
Use Category
gPV means all range DC Fuse used for breaking protection in solar photovoltaic power generation system.
Structure
Fuse Link make of pure silver,welding low tin and encapsulate in the high-strengthporcelain,
the fuse tube fille with high pure quartz sand,
with chemically processe as a arcmedium,fuse body is connecte with contacting terminals by spot welding.
the fuse tube fille with high pure quartz sand,
with chemically processe as a arcmedium,fuse body is connecte with contacting terminals by spot welding.
Testing Method
Appointed time and current
gPV The appointed time and current of Fuse
- moreover Voltage Rating: The fuse is rate for a maximum operating voltage of 1000V DC, making it suitable for use in a wide range of PV applications.
- in addition Current Rating: With a current rating of 32A, this fuse can handle high currents commonly found in solar installations, providing reliable protection against overcurrent conditions.
- Compact Size: The fuse follows a 10x38mm form factor, allowing for easy integration into PV system enclosures or combiner boxes.
- furthermore DC Application: Designed specifically for DC applications, this fuse offers optimal performance and safety for photovoltaic systems.
- first Reliable Protection: The fuse provides reliable protection against overloads, short circuits, and fault conditions in the PV system, preventing damage to the solar panels, inverters, or other connected equipment.
- second High Breaking Capacity: It features a high breaking capacity to ensure effective interruption of fault currents, minimizing potential risks to the PV system and its components.
- next Robust Construction: The fuse is constructe with high-quality materials to withstand harsh environmental conditions typically encountere in outdoor PV installations.
- afterward Easy Installation: The fuse is equippe with standard-sized terminals for convenient installation, making it compatible with common PV system wiring configurations.
- subsequently Compliance: This photovoltaic fuse complies with relevant industry standards and certifications, ensuring its reliability and safety in PV applications.
- finally Longevity: The fuse is designe for long-lasting performance, providing reliable protection throughout the lifespan of the PV system.
The 10×38, 1000V DC, 32A Photovoltaic Fuse offers a reliable,
and efficient solution for protecting photovoltaic systems from overcurrent and fault conditions.
Its compact size, high breaking capacity,
and compliance with industry standards make it an ideal choice for solar power installations.
