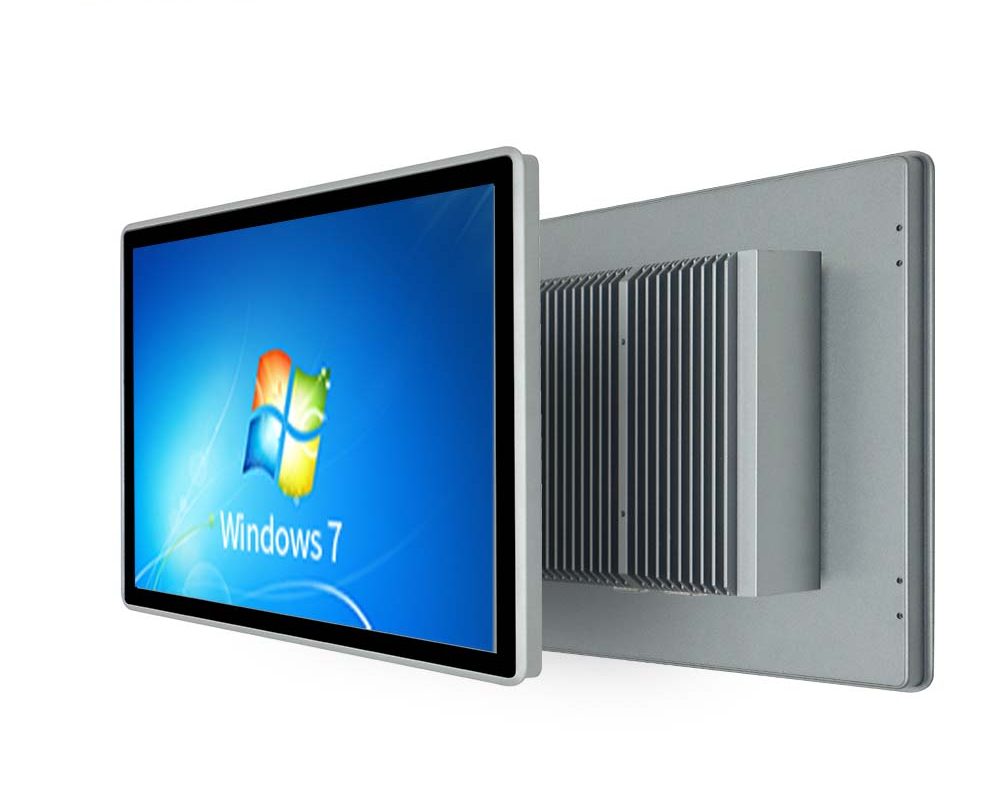

15 Inch Fanless Industrial PC Capacitive Touch Screen Computer.
Product Paramenters
|
Model
|
ITPC-B150-CH2
|
|
Case Color
|
Gray
|
|
Material
|
Aluminum alloy chassis+ steel plate
|
|
Size
|
15 inch TFT-LCD
|
|
Ratio
|
4:3
|
|
Resolution
|
1024*768
|
|
Brightness
|
250 cd/m2
|
|
Touch Screen
|
Multi point capacitive touch screen, with a lifespan of over 50 million times
|
|
Processor
|
6/8/10/11th Gen Intel Core i3/i5/i7
|
|
Chipset
|
Intel Graphics core graphics card
|
|
Ram
|
2xDDR4 memory slot, Max. 32GB
|
|
Storage
|
1x M.2 slot
|
|
I/O
|
1x Power Switch, 1x DC, 1x HD-M-I, 1x VGA, 2x USB3.0, 2x USB2.0
|
|
2 x RTL8111H 1000M Lan, 1 x Mic, 1 x Line Out, 2 x COM (1 x COM RS232/RS485 Optional)
|
|
|
Expansion
|
6th Gen processor, Support 1x Mini PCIE slot (WIFI/4G Optional）
|
|
8/10/11th Gen processor, Support 2xM.2 slot (support WiFi+4G)
|
|
|
Speaker
|
2 x 8 ohms 2 watt speakers ( If need 9-36 V wide voltage, only 1 speaker )
|
|
Power Supply
|
DC 12V
|
|
Work Temp
|
0℃ ~ +50℃, surface air flow
|
|
Work Humidity
|
5% ～ 95% non-condensing
|
|
Installation size
|
Embedded Size：510 * 302 mm; Wall-Mount Size: 100 * 100 mm
|
|
Dimension
|
346 * 271 * 65 mm
|
|
Net Weight
|
3.8 kg
|
|
Application
|
Industrial Automation，Medical，Logistics Transportation, Warehousing, Machine Vision, etc.
|
