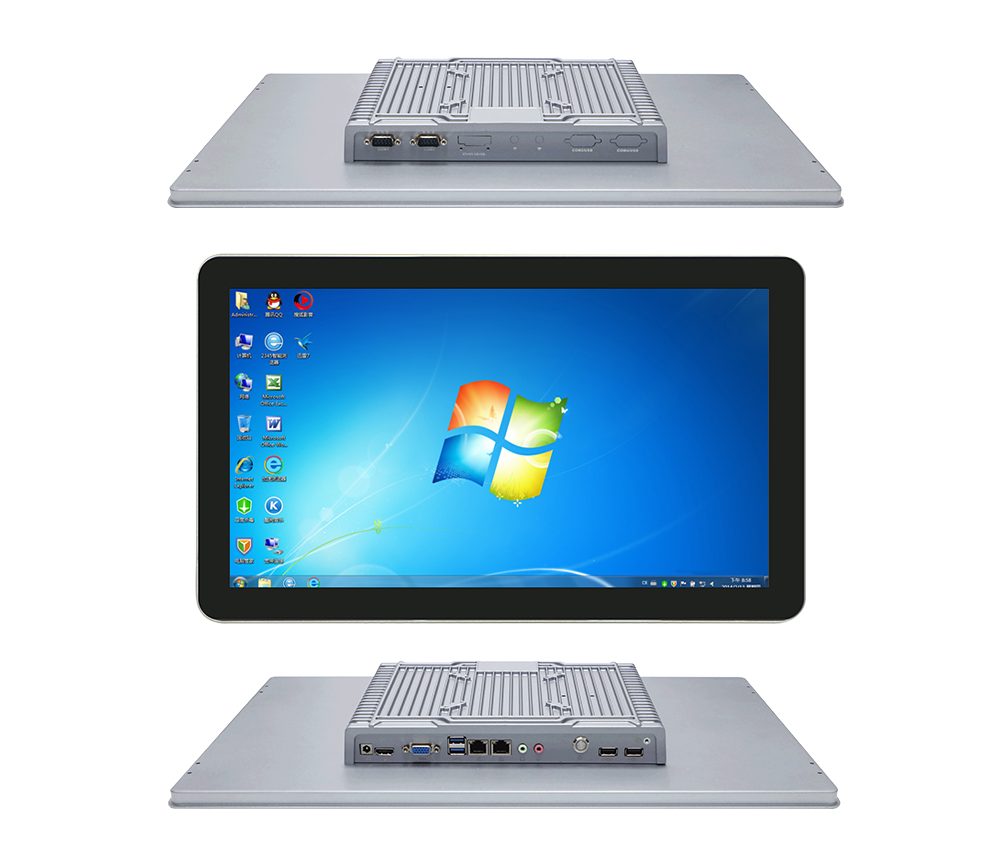

17 Inch Panel Pc J1900 Multi Touch IP65 Waterproof,
Product Paramenters
|
Model
|
ITPC-B170-CP2
|
|
Case Color
|
Gray+Silver
|
|
Material
|
Aluminum alloy chassis+ steel plate
|
|
Size
|
17 inch TFT-LCD
|
|
Ratio
|
4:3
|
|
Resolution
|
1024 * 768
|
|
Brightness
|
350 cd/m2
|
|
Touch Screen
|
Multi point capacitive touch screen, with a lifespan of over 50 million times
|
|
Processor
|
Intel Celeron J1900
|
|
4th/5th gen Intel Core i5/i7 (the specific model is subject to shipment)
|
|
|
Chipset
|
Intel Graphics
|
|
Ram
|
J1900: 1 DDR3L 1333/1600 Ram slot, Max. 8GB
|
|
4th/5th Gen i5/i7: 2 DDR3L 1333/1600 Ram slot, Max. 16GB
|
|
|
Storage
|
1 MSATA (According To The Selected Motherboard)
|
|
I/O
|
1 Power Switch, 1 DC , 1 HD-M-I, 1 VGA, 2 USB 3.0, 2 USB 2.0,
|
|
2 Gigabit Ethernet ports, 1 Mic, 1 Line Out, 2 COM (COM 1,2 RS232/485)
|
|
|
Expansion Slot
|
1 MINI PCIE slot, (support WIFI/4G )
|
|
Speaker
|
Two 8-ohm 2-watt speaker
|
|
Power Supply
|
DC 12V (Optional 9-36V)
|
|
Work Temp
|
0℃ ~ +50℃, surface air flow
|
|
Work Humidity
|
5% ～ 95% non-condensing
|
|
Dimension
|
377*311.5*48 mm
|
|
Net Weight
|
3.7 kg
|
