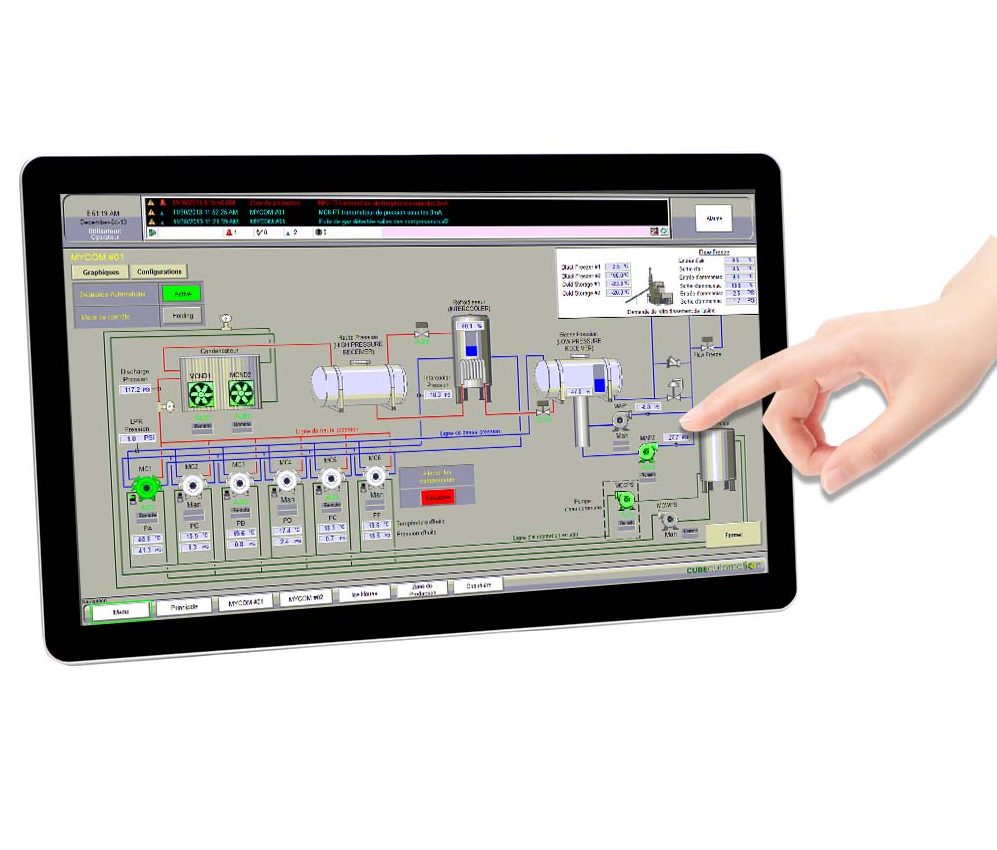

21.5 Inch Industrial Intel J1900 Touch Screen Panel PC,
Specifications
|
Model
|
ITPC-B215-CF2
|
|
Color
|
Gray
|
|
Material
|
Aluminum alloy chassis+ steel plate
|
|
Size
|
21.5inch TFT-LCD
|
|
Ratio
|
16 : 9
|
|
Resolution
|
1920 * 1080
|
|
Brightness
|
250 cd/m2
|
|
Touch Screen
|
Multi point capacitive touch screen,
with a lifespan of over 50 million times; Adopting full lamination technology for lamination with LCD screen; |
|
Processor
|
Onboard Intel Celeron J1900/J6412
|
|
Onboard 4/5th Intel Core i5/i7 (the specific model is subject to shipment)
|
|
|
Onboard 6/8/10/11th Intel Core i3/i5/i7(the specific model is subject to shipment)
|
|
|
Chipset
|
Intel CPU integrated chip
|
|
RAM
|
J1900：1 DDR3L 1333/1600 Ram slot, Max. 8GB
|
|
J6412：1 DDR4 3200 Ram slot, Max. 16GB
|
|
|
4/5th i5/i7：support 2 DDR3L 1333/1600 Ram slot, Max. 16G
|
|
|
6/8/10/11th i3/i5/i7：support 2 DDR4 Ram slot, Max. 32G
|
|
|
Storage
|
1*MSATA/M.2 slot (According To The Selected Motherboard)
|
|
Display Chip
|
Intel Graphics
|
|
Expansion Slot
|
1*MINI PCIE/M.2 slot，(support WIFI/4G , J6412 motherboard doesn’t support 4G )
|
|
I/O
|
1*On/Off，1*DC，1*HD-M-I，1*VGA，2*USB 3.0，2*USB 2.0，
|
|
2 Gigabit Ethernet, 1 Mic, 1 Line Out,2 COM (one of Support RS232/485)
|
|
|
Speaker
|
Two 8-ohm 2-watt speaker(customize the wide voltage, the number of speakers is 1)
|
|
Input Voltage
|
DC 12V (Optional 9-36V)
|
|
Work Temp
|
0℃ ~ +50℃, surface air flow
|
|
Humidity
|
5% ~ 95% non-condensing state
|
|
Input Voltage
|
DC 12V (Optional 9-36V)
|
|
Dimension
|
518 * 310 * 54 mm
|
|
Weight
|
3.9kg
|
|
Application
|
Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,.
|
