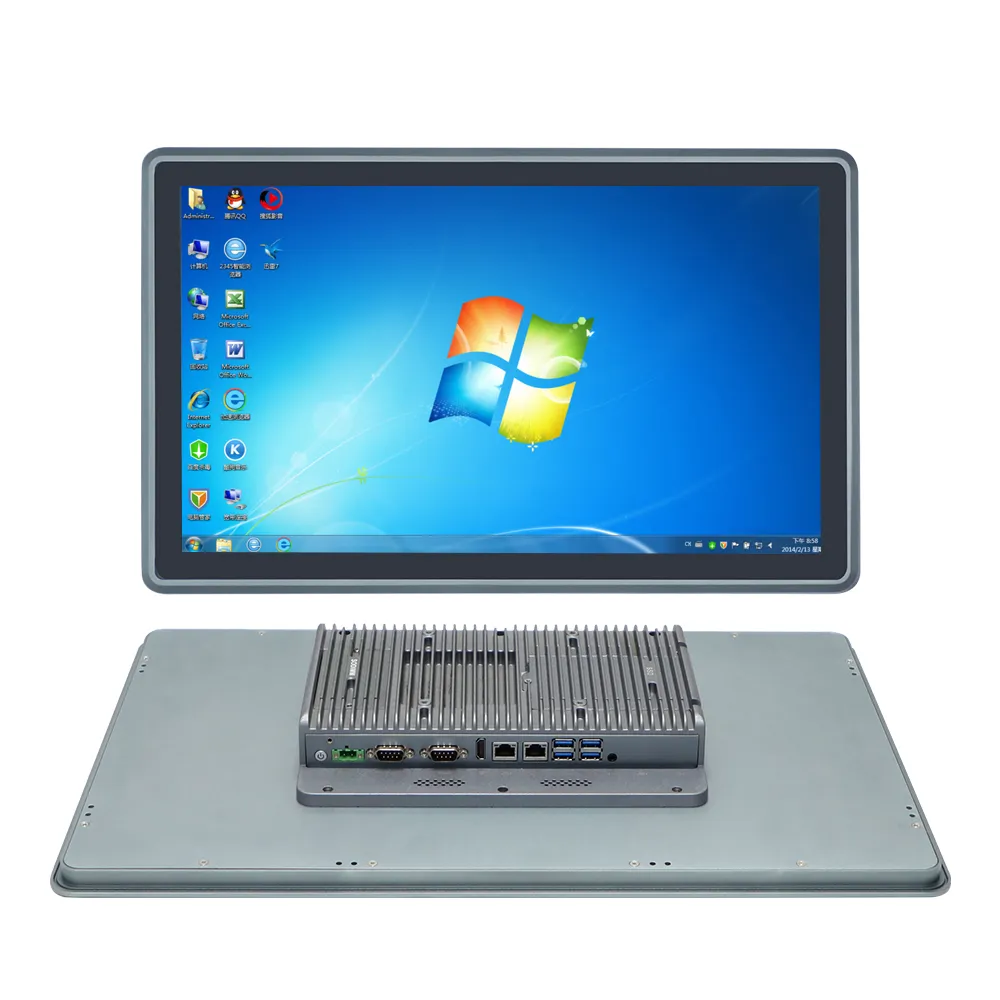

21.5 inch Resistive/Capacitive Touch Panel PC,
with Intel Celeron J6412,4205U,i3 i5 i7 processor,
support TPM2.0,support Windows 11 OS,
olso support 9～36V wide-voltage input,
Ratio: 16:9,
Resolution: 1920 * 1080,
Brightness: 250 cd/㎡.
| System Parameter | |
| Model | ITPC-A215C |
| Processor | Intel Celeron 4205U, （Dual core dual threads，1.8Ghz，2MB Cache） |
| Intel Celeron J6412, (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz) |
|
| Intel Core i3-10110U, (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
|
| Intel Core i5-8260U, （Quad core eight threads，1.6Ghz，Max turbo 3.9Ghz，6MB Cache） |
|
| Intel Core i7-8565U, （Quad core eight threads，1.8Ghz，Max turbo 4.6Ghz，8MB Cache） |
|
| Memory | 1*DDR4 2400/2666 SODIMM memory slot，Max. 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display port | 1xHD，1xLVDS, (Support synchronous and asynchronous dual display) |
| Storage |
1*M.2 2280 slot（SATA signal）, |
| Expansion | 1*Mini PCIE slot（support WIFI/BT/3G/4G,with SIM card slot） |
| I/O | 1*HD,2*COM（COM1,2 support RS232/422/485,6*COM is optional）, 1*power button |
| 1*2Pin Supply Phoenix terminal,1*Audio&Speaker, 4*USB3.0,2*Intel 1000M Lan(4*Lan optional) |
|
| LCD | Size：21.5 inch TFT-LCD； |
| Ratio：16:9 ； | |
| Resolution：1920 * 1080； | |
| Brightness：250 cd/㎡； | |
| Viewing Angle：full angle | |
| Touch Screen | Resistive high-sensitivity touch screen with a lifespan of more than 50 million times; (capacitive touch screen is optional) |
| Speaker | Two 8-ohm 2-watt speaker |
| Power Supply | DC 9～36V wide-voltage，
Support positive and negative electrode protection |
| Other Function | TPM2.0 Secure encryption,Auto power-on, Timing boot,Wake on LAN,PXE boot, Watchdog（0～255 level） |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Gray (can be customized) |
| Material | Aluminum alloy chassis |
| Size | Dimension: 540 * 332 * 60 mm
Embedded Size：528 * 320 mm |
| Weight | 6.8kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（HDD）， -20℃～ +60℃（SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
