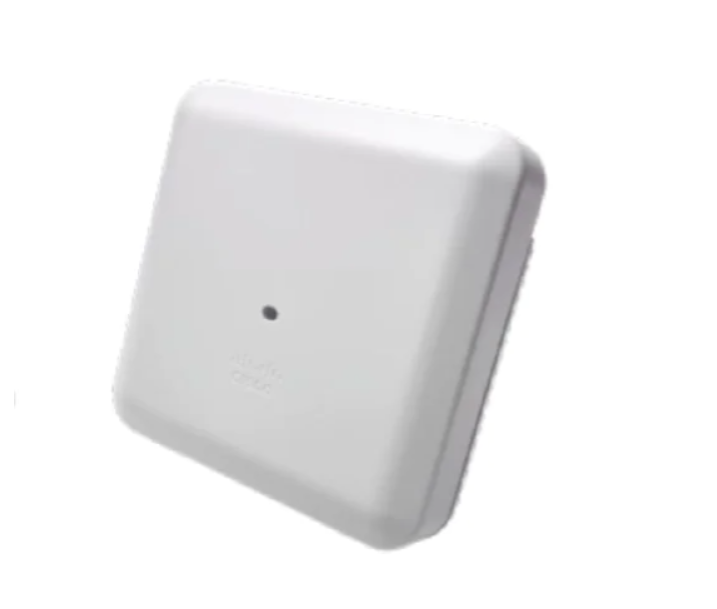

AIR-AP2802I-H-K9 Cisco 2800 Access Point Dual-band/802.11ac Wave2/Internal-Ant,
AIR-AP2802I-H-K9 is one of the Cisco Aironet 2800 Series Access Points.
This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers.
The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage.
AIR-AP2802I-H-K9 provides internal antenna and H regulatory domain.
Quick Specs
Table 1
| Product Code | AIR-AP2802I-H-K9 |
| Frequency band and 20-MHz operating channels | H (H regulatory domain):
– 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
| Antenna | Internal Antenna |
| Features | – 4×4 MU-MIMO with three spatial streams
– MRC – 802.11ac Beamforming – 20-, 40-, 80, 160-MHz channels – PHY data rates up to 5.2 Gbps – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
| Interfaces | – 2 x 100/1000BASE-T autosensing (RJ-45)
– Management console port (RJ-45) – USB 2.0 (enabled via future software) |
| System memory | – 1024 MB DRAM
– 256 MB flash |
| Dimensions (W x L x H) | 8.66 x 8.68 x 2.17 in. |
| Net Weight | 3.53 lb (1.6 kg) |
