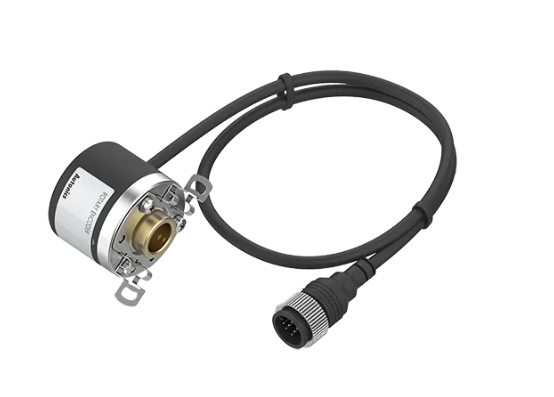

AUTONICS E40HB8-1024-6-L-5-C,
Data sheet Print
| Shaft inner diameter | Ø8mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1024P/R |
| Output phase | A,  , B,  , Z,  |
| Control output | Line Driver |
| Power voltage | 5VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
