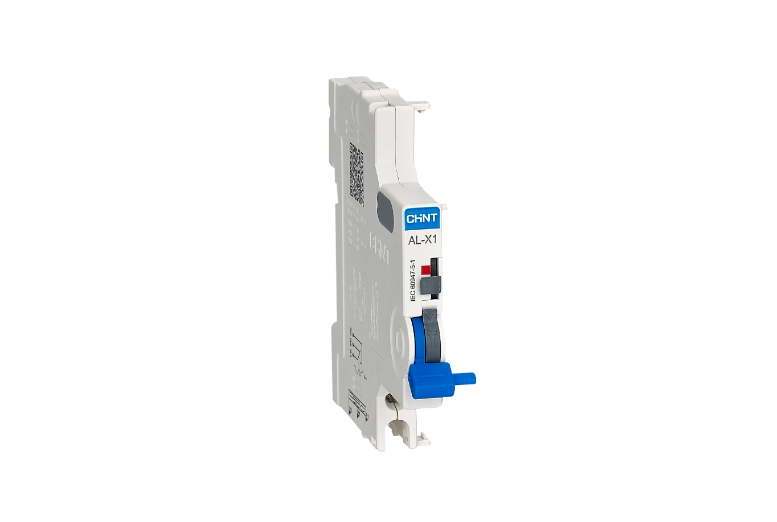

CHINT AL-X1 Alarm Auxiliary Contact signal indication,
of circuit breaker status, enabling monitoring of open, close, and fault trip conditions.
furthermore Designe for use with NXB-63 and NXB-40 series circuit breakers,
in addition it helps ensure operational safety through reliable alarm signaling. Built to IEC60947-5 standards and certified for CE and RoHS,
moreover the AL-X1 offers a compact design, long service life of over 10,000 cycles,
and simple DIN-rail installation, making it ideal for intelligent distribution systems.
- furthermore Function: Provides long-distance signal indication for open/close and fault trip status
- moreover Applicable Circuit Breakers: NXB-63 and NXB-40 series
- in contrast Standards Compliance: IEC60947-5
- as a result Certifications: CE, RoHS
- Rated Operating Voltage (Ue):
- AC 415V / 240V
- DC 130V / 48V / 24V
- Rated Operating Current (Ie):
- AC-12: 415V → 3A; 240V → 6A
- DC-12: 130V → 1A; 48V → 2A; 24V → 6A
- Utilization Category: AC-12, DC-12
- Operating Life: ≥10,000 cycles
- Contact Operation Characteristics:
- When auxiliary contact is open, terminals 91–94 are connecte.
- likewise is close, terminals 91–92 are connecte.
- If manually opened, 91–92 remain connected.
- If tripped by fault, 91–92 open and 91–94 connect (alarm condition).
- Mounting Type: DIN rail (TH35-7.5 steel rail)
- Assembly Method: Attach to NXB-40/63 circuit breaker, then mount both on DIN rail
- Housing: Flame-retardant engineering plastic
- Operating Environment: Suitable for standard indoor low-voltage distribution systems.
