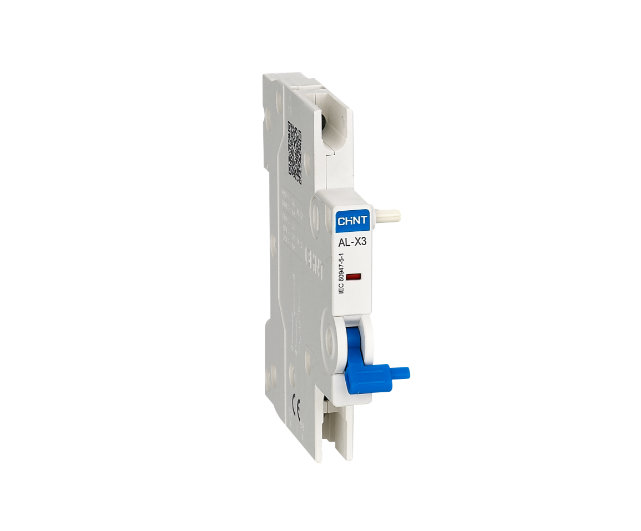

CHINT AL-X3 Alarm Contact

CHINT AL-X3 Alarm Contact,
is an auxiliary signaling device designe for use with NXB-125 series circuit breakers. It provides remote indication of circuit breaker status (ON/OFF/trip) to improve monitoring and safety in electrical systems. When integrate, it signals whether the breaker is manually opene or trippe due to a fault. Built to IEC 60947-5-1 standards, the AL-X3 offers a 10,000-cycle lifespan, high contact reliability, and compact modular design for easy DIN-rail installation.

• Function: Provides long-distance signal indication of the circuit breaker’s ON/OFF status and trip alarms.
• Applicable Breaker: NXB-125 series circuit breakers
• Standards Compliance: IEC 60947-5-1
• Certifications: CE, RoHS
• Utilization Category: AC-12, DC-12
• Rated Operating Voltage (Ue):
  • AC: 240V / 415V
  • DC: 24V / 48V / 130V
• Rated Operating Current (Ie):
  • AC 415V: 3A
  • AC 240V: 6A
  • DC 130V: 1A
  • DC 48V: 2A
  • DC 24V: 6A
• Contact Operation:
  • Alarm contact open → terminals 91–94 connected
  • Alarm contact closed → terminals 91–92 connected
  • Manual open → 91–92 remain connected
  • Trip open (fault) → 91–92 open, 91–94 connected
• Mechanical Life: 10,000 cycles
• Mounting Method:
  • Remove left cover of NXB-125 breaker before assembly
  • Mount assembled unit on TH35-7.5 DIN steel rail (illustrated on page 134)
• Dimensions (mm):
  • Height: 81.0 ±1.4
  • Width: 9 ±0.18
  • Depth: 75.2 ±1.2 (see Figure 3, page 134)
  • Mounting holes: 45 ±0.31 / 50.5 ±0.31 spacing
