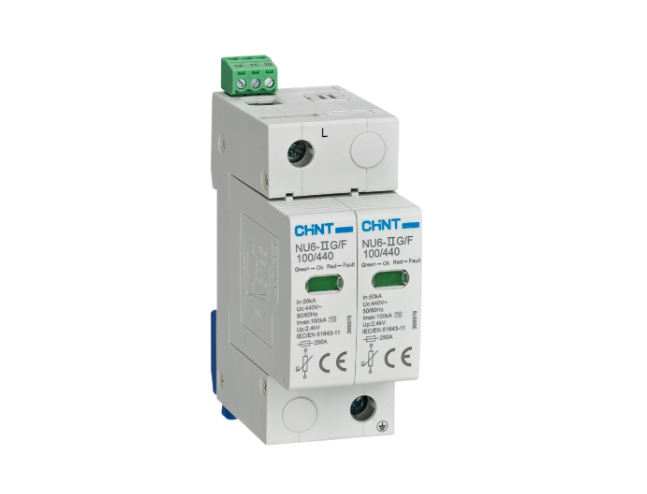

CHINT NU6-IIG Low-Voltage Surge Protective Device

CHINT NU6-IIG Low-Voltage Surge Protective Device

Add to wishlist
Category: Terminals & Bars
Brand: CHINT
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • 1009222 / FL SWITCH 2306-2SFP PN Phoenix Contact Managed Switch 2000 series, 6 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, degree of protection

    1009222 / FL SWITCH 2306-2SFP PN Phoenix Contact Managed Switch 2000 series, 6 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, degree of protection

  • Pneumatic Cylinder DC 10-30V 2 Wired CS1-J Magnetic Reed Switch

    Pneumatic Cylinder DC 10-30V 2 Wired CS1-J Magnetic Reed Switch

  • CHINT B1 Series UL489 Miniature Circuit Breaker

    CHINT B1 Series UL489 Miniature Circuit Breaker

  • Series Intelligent Voltage/Current Signal Isolator

    Series Intelligent Voltage/Current Signal Isolator

  • SMC C(D)Q2-Z Compact Cylinder Double Acting Single Rod Large Bore

    SMC C(D)Q2-Z Compact Cylinder Double Acting Single Rod Large Bore

  • SMC NCG Accessory Mounting Brackets

    SMC NCG Accessory Mounting Brackets

Description
Shipping & delivery

CHINT NU6-IIG Low-Voltage Surge Protective Device,
offers reliable protection for electrical systems and on-loading equipment against lightning and transient overvoltage.
Built for 230/400V AC 50/60Hz systems,
it complies with IEC/EN 61643-11 standards and is suitable for various grounding systems (TN-S, TN-C, TT, IT).
Featuring modular design, removable protection modules,
and visual fault indicators, the NU6-IIG ensures safe,
efficient surge suppression in residential, commercial, and industrial networks.

  • Standard Compliance: IEC/EN 61643-11
  • Rated Operating Voltage (Ue): 230/400V AC, 50/60Hz
  • Available Pole Configurations: 1P, 2P, 3P, 4P, 1P+N, 3P+N
  • Protection Levels:
    • Maximum Continuous Operating Voltage (Uc): 275V / 320V / 385V / 440V
    • Protection Level (Up): 1.5–2.4kV depending on model
    • Maximum Discharge Current (Imax): 40kA / 65kA / 100kA (8/20μs waveform)
    • Nominal Discharge Current (In): 20kA / 30kA / 50kA
  • Auxiliary Contact Options: 1NO+1NC, rated at AC250V, 0.5A (for remote signaling)
  • Grounding System Compatibility:
    • TN-S: L–PE, L–N, N–PE
    • TN-C: L–PEN
    • TT: L–N, N–PE
    • IT: L–PE
  • Construction Features:
    • Modular structure with removable protective module and base
    • Visual fault indicator for damaged modules
    • No need to disconnect circuit when replacing module
    • Voltage indicator window prevents mismatched replacement
  • Installation Type: DIN rail mounting (TH35-7.5)
  • Dimensions (mm):
    • Width per pole: 18 mm
    • Height: 67.7 mm
    • Depth: 50 mm
    • Length varies from 18 mm (1P) to 144 mm (4P)
  • Optional Remote Signaling Port: Available in “/F” versions
  • Certifications: CE, RoHS
