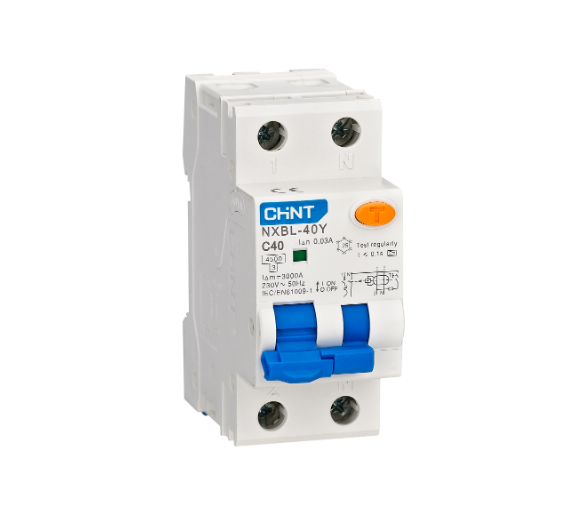

CHINT NXBL-40Y Residual Current Operated Circuit Breaker,
combines residual current and over-current protection in one device,
ensuring comprehensive safety for personnel, equipment, and wiring.
It detects earth faults, overloads, and short circuits, automatically disconnecting the circuit to prevent electric shocks and fires.
With a rated breaking capacity of 4.5kA, sensitivity from 30mA to 300mA,
and tripping curves (B or C) for diverse applications, the NXBL-40Y offers high reliability,
compact design, and CE-certified performance for residential, commercial, and industrial power systems.
- Standard: IEC/EN 61009-1
- Function: Combined protection against residual current, overload, and short-circuit faults
- Rated Current (In): 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
- Poles: 1P+N (N right)
- Rated Voltage (Ue): 220/230/240V~
- Residual Sensitivity (IΔn): 30mA, 100mA, 300mA
- Tripping Class:
- AC type: For sinusoidal AC residual currents
- A type: For sinusoidal and pulsating DC residual currents
- Thermo-Magnetic Release Characteristic: B, C curves
- Rated Short-Circuit Capacity (Icn): 4.5kA
- Rated Frequency: 50/60Hz
- Rated Making/Breaking Capacity (Im): 3,000A
- Dielectric Test Voltage: 2kV for 1 min
- Rated Impulse Withstand Voltage (Uimp): 4kV
- Insulation Voltage (Ui): 500V
- Mechanical Life: 20,000 operations
- Electrical Life: 4,000 operations
- Protection Degree: IP20
- Mounting Type: DIN rail EN 60715 (35mm) via fast clip device
- Terminal Type: Cable/U-type busbar/Pin-type busbar
- Terminal Capacity:
- Cable: 25 mm² (AWG 18–3)
- Busbar: 10 mm² (AWG 18–8)
- Tightening Torque: 2 Nm
- Operating Temperature: −25°C to +70°C
- Storage Temperature: −40°C to +70°C
- Temperature Derating Reference: 30°C
- CE Certified
