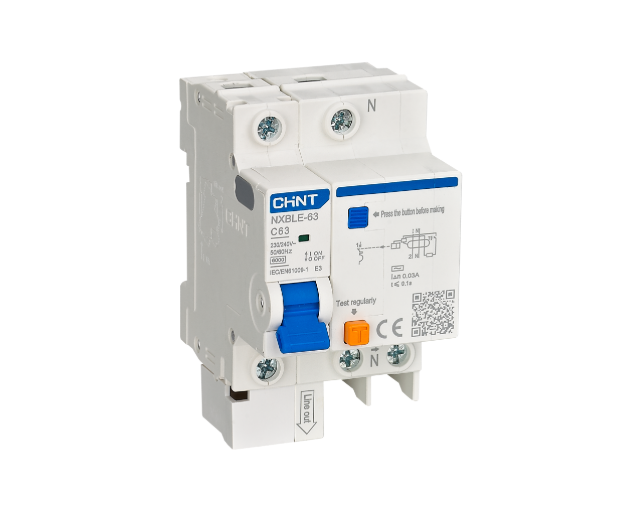

CHINT NXBLE-63 Residual Current Operated Circuit Breaker (RCBO),
combines residual current, overload, and short-circuit protection in one compact unit.
Designe for AC 50/60Hz systems up to 240/415V, it ensures reliable personal.
and equipment safety by detecting earth leakage faults while maintaining circuit continuity.
With rated currents from 6A to 63A, B and C tripping curves, and breaking capacity up to 6kA,
the NXBLE-63 offers enhanced electrical protection and complies with IEC/EN 61009-1 standards for residential,
commercial, and industrial power systems.
- Function: Combined residual current, overload, and short-circuit protection
- Standard Compliance: IEC/EN 61009-1
- Rated Current (In): 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
- Poles: 1P+N, 2P, 3P+N, 4P
- Rated Voltage (Ue): 240/415V AC
- Rated Frequency: 50/60Hz
- Tripping Characteristics: B and C curves
- Rated Residual Operating Current (IΔn): 30mA, 100mA, 300mA
- Rated Short-circuit Breaking Capacity (Icn): 6kA
- Rated Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 6kV (1.2/50μs)
- Dielectric Test Voltage: 2kV for 1 minute
- Operating Temperature: −25°C to +70°C
- Storage Temperature: −40°C to +70°C
- Mechanical Life: ≥20,000 operations
- Electrical Life: ≥4,000 operations
- Protection Degree: IP20
- Mounting: DIN rail EN 60715 (35mm), with fast clip design
- Terminal Capacity:
- Cable: 25mm² (AWG 18–3)
- Busbar: 10mm² (AWG 18–8)
- Tightening Torque: 2 N·m (17.7 in-lbs)
- Applicable Systems: TN and IT low-voltage networks
- Accessories Compatibility: XF9, XF9J, SHT-X1, UVT-X1, OUVT-X1, SMG-WL1SR
