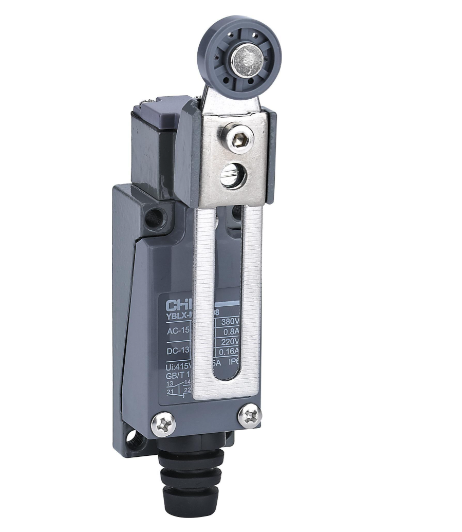

CHINT YBLX-ME Travel Switch

CHINT YBLX-ME Travel Switch,
is a precision mechanical limit switch designe for motion control and position detection in industrial automation systems.
It is suitable for use in AC circuits up to 380V or DC circuits up to 220V,
offering reliable performance in machinery, conveyors, and automated assembly lines.
With high mechanical strength, IP65 protection, and a variety of actuator types, the YBLX-ME ensures accurate operation,
long service life, and easy installation even in demanding industrial environments.

• Standards Compliance: IEC 60947-5-1, GB/T 14048.5
• Rated Operating Voltage (Ue): AC 380V / DC 220V
• Rated Thermal Current (Ith): 10A
• Rated Operating Current (Ie):
  • AC-15: 380V / 4A
  • DC-13: 220V / 0.3A
• Rated Insulation Voltage (Ui): 500V
• Contact Configuration: 1NO + 1NC (snap-action type)
• Contact Resistance: ≤ 25mΩ
• Insulation Resistance: ≥ 100MΩ (at 500V DC)
• Dielectric Strength: 2500V AC, 1 min between contacts and terminals
• Actuator Types:
  • Roller lever (adjustable/fixed)
  • Roller plunger
  • Top plunger
  • Rod lever and fork lever options
• Mechanical Life: ≥ 10 million operations
• Electrical Life: ≥ 500,000 operations
• Operating Frequency: 120 operations/minute (mechanical)
• Protection Degree: IP65 (dust-tight and water-jet resistant)
• Ambient Temperature: −25°C to +70°C
• Relative Humidity: ≤ 90% at +20°C
• Mounting Method: Screw mounting; adjustable head for flexible installation
• Housing Material: Reinforced thermoplastic or aluminum alloy body
• Weight: Approx. 0.2–0.3 kg depending on model
