Table:
| Graduation | Accuracy | Protective Tube Size (mm) | Wire Type | Temperature Range (°C) | Inner Lead Form | Wiring Form |
|---|---|---|---|---|---|---|
| PT100 | T | 2.0 | Metal Mesh Shielded Inner Glass Fiber | 400 | Two-Wire | Y-Terminal |
| PT100 | A | 3.0 | Hi-Temp Teflon PTFE Wrapping | 350 | Three-Wire | Pin Terminal |
| PT1000 | B | 4.0 | Teflon PFA | 260 | – | – |
| PT1000 | C | 5.0 | Silicon Rubber | 180 | Four-Wire | Tail Half Stripping |
| PT1000 | – | 6.0 | Polyethylene PVC | 105 | – | – |
Text Description:

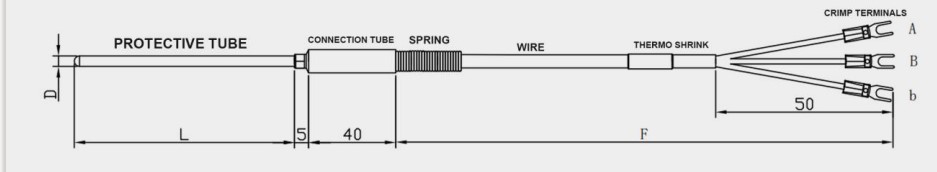

The product line includes PT100 and PT1000 temperature sensors with the following configurations:
-
PT100 Models:
-
Accuracy T:
-
Protective Tube: 2.0mm diameter
-
Wire: Metal Mesh Shielded Inner Glass Fiber (400°C rating)
-
Connection: Two-Wire with Y-Terminal
-
-
Accuracy A:
-
Protective Tube: 3.0mm diameter
-
Wire: Hi-Temp Teflon PTFE Wrapping (350°C rating)
-
Connection: Three-Wire with Pin Terminal
-
-
-
PT1000 Models:
-
Accuracy B:
-
Protective Tube: 4.0mm diameter
-
Wire: Teflon PFA (260°C rating)
-
-
Accuracy C:
-
Protective Tube: 5.0mm diameter
-
Wire: Silicon Rubber (180°C rating)
-
Connection: Four-Wire with Tail Half Stripping
-
-
Standard Option:
-
Protective Tube: 6.0mm diameter
-
Wire: Polyethylene PVC (105°C rating)
-
-
Key Notes:
-
PT100 models feature complete wiring specifications
-
PT1000 Accuracy B and the 6.0mm option lack specified inner lead and wiring forms
-
Temperature ratings decrease with different wire types (400°C to 105°C)
-
Protective tube sizes increase progressively from 2.0mm to 6.0mm across the product line
