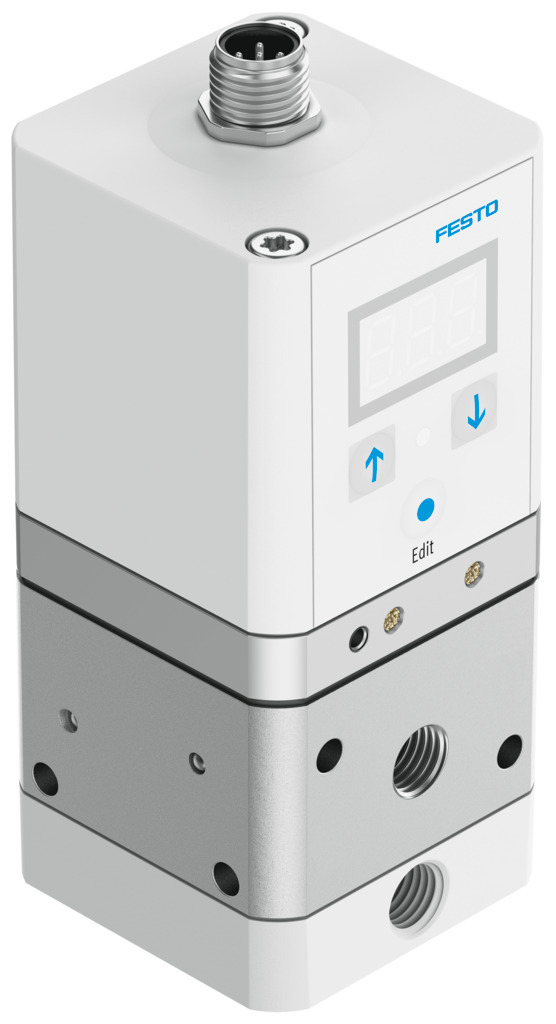

FESTO VPPE-3-1-1/8-2-010-E1T Proportional-pressure regulator
- Nominal size, supply5 mm
- Nominal size, exhaust2.5 mm
- Type of actuationElectric
- Sealing principleSoft
- Mounting positionoptional Preferably vertical
- DesignPiloted diaphragm regulator
- Short circuit current ratingFor all electrical connections
- Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
- Symbol00995303
- Reverse polarity protectionFor all electrical connections
- Type of resetMechanical spring
- Type of pilotingPilot actuated
- Valve function3-way proportional pressure regulator
- Display typeLED indicator 3-digit
- Pressure regulation range0.002 MPa … 0.2 MPa
- Pressure regulation range0.02 bar … 2 bar
- Inlet pressure 13 bar … 4 bar
- Inlet pressure 10.3 MPa … 0.4 MPa
- Max. pressure hysteresis0.002 MPa
- Max. pressure hysteresis0.02 bar
- Max. pressure hysteresis0.29 psi
- Standard nominal flow rate (standardised to DIN 1343)310 l/min
- Operational voltage range DC21.6 V … 26.4 V
- Max. current consumption160 mA
- Duty cycle100%
- Max. electrical power consumption4.2 W
- Residual ripple10 %
- Switching outputPNP
- Signal range analogue output0 – 10 V
- Signal range analogue input0 – 10 V
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
- Note on operating and pilot mediumLubricated operation not possible
- ApprovalRCM trademark c UL us listed (OL)
- KC markKC-EMV
- CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Certificate issuing authorityUL E322346
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Media temperature10 °C … 50 °C
- Degree of protectionIP65
- Ambient temperature0 °C … 60 °C
- Product weight390 g
- Linearity1 %FS
- Hysteresis1 %FS
- Reproducibility0.5 %FS
- Total accuracy1.5%FS
- Temperature cooefficient0.04 %/K
- Electrical connection5-pin M12 Plugs
- Type of mountingWith through-hole
- Pneumatic connection, port 1G1/8
- Pneumatic connection, port 2G1/8
- Pneumatic connection, port 3G1/8
- Note on materialsRoHS-compliant
- Material housingAnodised wrought aluminium alloy
