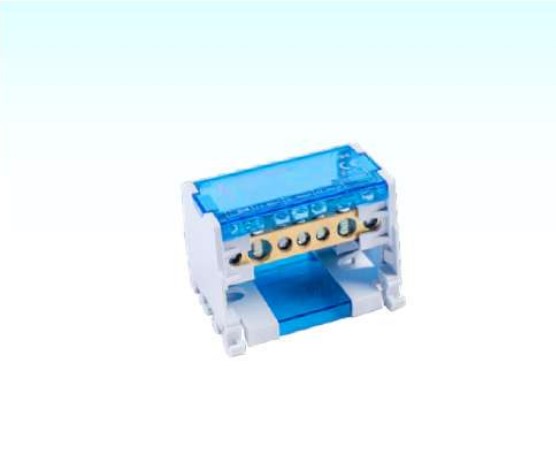

3-Phase Power Distribution Terminal Block
| Category | Specifications |
|---|---|
| Certifications | CB/CE/UKCA/RoHS |
| Materials | • Screw: Zinc-Coated Steel • Conductor: Brass • Housing: PA66 V-0 • Cover: PC |
| Electrical Data | • Standards: IEC 60947-7-1 • Voltage: 500V • Current: 125A • Icw: 25kA • Ipk: 20kA |
| Wiring Data | Main Input (A): • Connection Points: 1 • Torque: 2-3N·m • Wire Range: – Rigid: 10-35mm² – Flexible: 10-25mm² Phase Outputs: |
| Packaging | Not specified |
Key Features:
-
High-current 3-phase design (125A capacity)
-
Robust zinc-coated steel and brass construction
-
Multiple output configurations:
-
1× high-capacity output (B phase)
-
5× medium-capacity outputs (C phase)
-
4× additional outputs
-
-
Flame-retardant PA66 V-0 housing
Technical Notes:
• Input accepts large conductors (up to 35mm² rigid)
• Output B supports mid-range wires (2.5-6mm²)
• Packaging details not provided in source
• All connections use 2-3N·m torque range
• Superior short-circuit withstand (25kA Icw)
