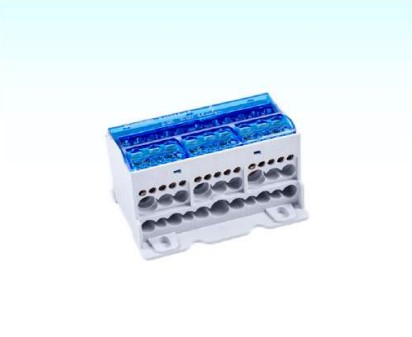

Power Distribution Terminal Block
| Category | Specifications |
|---|---|
| Certifications | CB/CE/UKCA/RoHS |
| Dimensions | 74×99×51mm |
| Materials | • Screw: Zinc-Coated Steel • Conductor: Brass • Housing: PA66 V-0 • Cover: PC |
| Electrical Data | • Standards: IEC 60947-7-1 • Voltage: 690V • Current: 125A • Icw: 4.4kA • Ipk: 30kA |
| Wiring Data | Conductor Connections: • In: 3×1 (6-35mm² / 9-2 AWG) • Out1: 3×5 (1.5-6mm² / 15-9 AWG) • Out2: 3×2 (4-16mm² / 11-5 AWG) Natural Bar Connections: |
| Torque Specs | • 1.5N·m (In/Out2/Natural A&C) • 0.8N·m (Out1/Natural B) |
| Packaging | • 1PC per inner box • 50PCS per master carton |
Key Features:
-
Multi-circuit distribution block (3 input/7 output paths)
-
Dual connection systems (Conductor + Natural Bar)
-
Variable torque requirements (0.8N·m to 1.5N·m)
-
Multiple wire range compatibility:
-
Main: 6-35mm² / 9-2 AWG
-
Secondary: 1.5-16mm² / 15-5 AWG
-
-
High short-circuit withstand (4.4kA Icw / 30kA Ipk)
