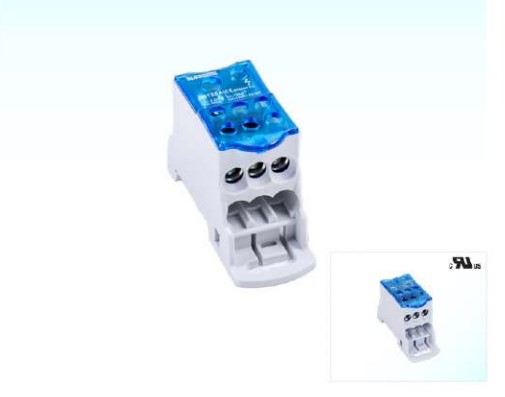

Terminal Block Specifications
| Category | Specifications |
|---|---|
| Certifications | UL/CB/CE/UKCA/RoHS |
| Dimensions | 77×29×46mm |
| Materials | • Screw: Zinc-Coated Steel • Conductor: Tin-Coated Brass • Housing: PA66 V-0 • Cover: PC |
| Electrical Data | • Standards: IEC 60947-7-1, UL1059 • Voltage: 1000V (IEC) / 600V (UL) • Current: 125A (IEC) / 150A (UL) • Icw: 4.2kA • Ipk: 30kA |
| Wiring Data | Input (A): • Connection Points: 1 • Torque: 8.5N·m (HS) • Wire Range: 10-35mm² / 8-1/0 AWGOutput (B & C): • Connection Points: 1 each • Torque: 3.5N·m (HS) • Wire Range B: 6-16mm² / 14-2 AWG • Wire Range C: 2.5-16mm² / 14-4 AWG |
| Packaging | • 5PCS per inner box • 160PCS per master carton |
| Accessories | Jumper: FIS-A |
Key Features:
-
Dual-certified (IEC/UL standards)
-
Multi-voltage rating (1000V IEC/600V UL)
-
Three connection points (1 input, 2 outputs)
-
Different torque requirements for input/output:
-
8.5N·m for main input
-
3.5N·m for outputs
-
-
Varying wire compatibility per port
-
Includes jumper accessory (FIS-A)
