Shop for FJ500A FJ500A/N (UL)

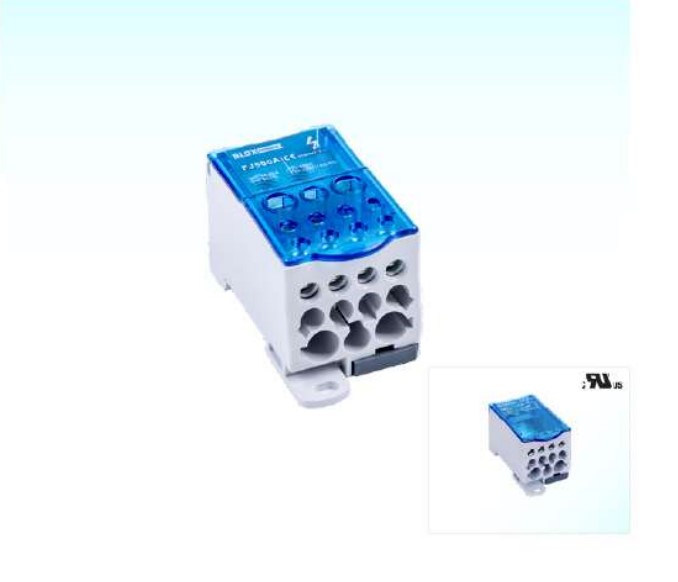

High-Current Distribution Terminal Block

Category	Specifications
Certifications	UL/CB/CE/UKCA/RoHS
Dimensions	90×46×50mm
Materials	• Screw: Zinc-Coated Steel • Conductor: Tin-Coated Brass • Housing: PA66 V0 • Cover: PC
Electrical Data	• Standards: IEC 60947-7-1, UL1039 • Voltage: 1000V (IEC) / 600V (UL) • Current: 500A (IEC) / 335A (UL) • Icw: 24.5kA • Ipk: 51kA
Wiring Data	Input (A): • Connection Points: 1 • Torque: 13.5N·m (H5) • Flexible Busbar: 8×24×1-2×20×1mm Output (B): • Connection Points: 2 • Torque: 4.4N·m (H5) • Wire Range: 6-35mm² / 10-1 AWG Output (C): • Connection Points: 4 • Torque: 2.7N·m (H3) • Wire Range: 2.5-10mm² / 14-6 AWG
Packaging	• 3PCS per inner box • 54PCS per master carton

Key Features:

Ultra-high current capacity (500A IEC/335A UL)
Heavy-duty busbar input (8×24×1-2×20×1mm)
Multiple output configurations:
- 2× high-current outputs (B)
- 4× medium-current outputs (C)
Different torque requirements per connection type
Varying wire compatibility for each output group

Technical Notes:
• H5-grade screws for main input and B outputs
• H3-grade screws for C outputs
• Master carton contains 18 inner boxes (3PCS each)
• Flame-retardant PA66 V0 housing with polycarbonate cover
• Designed for flexible busbar main input with standard wire outputs
