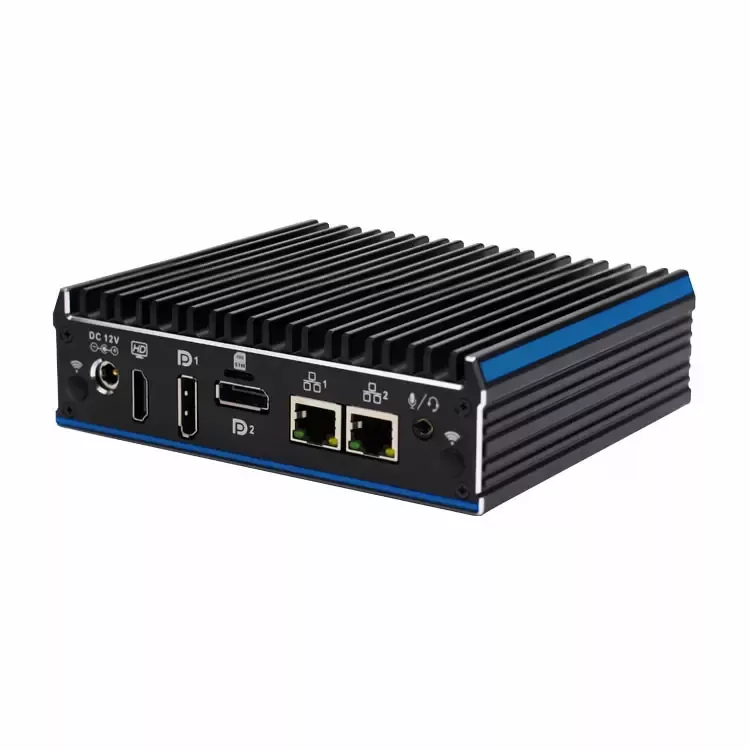

J4125 Mini PC Linux All aluminum structure,
Fanless Mini PC Onboard Intel Celeron Quad Core processor,
with DDR4 2400MHz SODIMM RAM Slot MAX 8GB,
and 1*M.2 2280 Slot Onboard 1*2.5”HDD,
with 6*USB（4*USB3.0) Support 3*M.2 Slot（Support WIFI ）,
olso Support Desktop Din Rail Mount VESA Wall Mount and etc.
| System Parameter | |
| Model | N1021 Fanless Mini PC |
| Processor | Intel Celeron J4125,（Quad core quad threading，4MB cache，2.0GHz，Max turbo 2.7GHz）. |
| CPU Architecture | Gemini Lake Refresh |
| Chipset | Integrated Intel HD Graphics 600 |
| Memory | Support 1*DDR4 2400MHz SODIMM RAM Slot，MAX 8GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD-MI，2*DP（Support synchronous and asynchronous three display，Max Resolution support 4096×2160 @ 60Hz） |
| Storage | Support 1*M.2 2280 M-key Slot（Support SATA） |
| Expansion | Support 1* Half height MINI PCIE slot（WIFI/BT Optional）,Support 1* Full height MINI PCIE slot（Support MSATA） |
| Support 1*M.2 2242 B-key Slot | |
| Support 1*M.2 2230 E-key Slot（Support WIFI、BT） | |
| Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module)，1*COM | |
| Front I/O | 1*Power Switch，4*USB3.0，2*USB2.0，1*COM |
| Rear I/O | 1*DC，1*HD-MI，2*DP，2*Intel 1000M LAN，1*SIM Card Slot，1*Audio (support audio and mic input) |
| Network | 2*10/100/1000M RTL8111H Ethernet Lan |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 144 * 126.5 * 42 mm |
| Weight | 0.8 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
