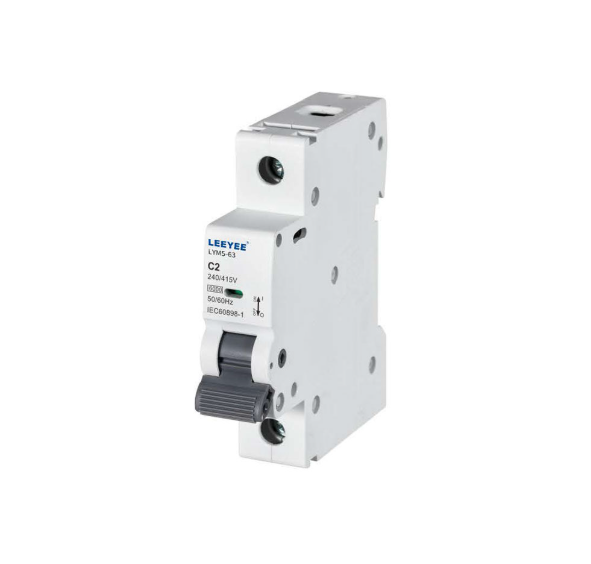

Miniature Circuit Breaker (MCB)LYM5-63

Miniature Circuit Breaker (MCB)LYM5-63,
High short-short capacity 6KA.
Designed to protect circuit carrying big current up to 63A.
Contact position indication.
Used as main switch in household and similar installation.

Construction and Feature

High short-short capacity 6KA.
Designed to protect circuit carrying big current up to 63A.
Contact position indication.
Used as main switch in household and similar installation.

Technical Data

Rated-Current: 6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated-Voltage:230/400VAC(240/415)
Rated-Frequency: 50/60Hz
Number of Pole: 1P,2P,3P,4P(1P+N,3P+N)
Module size:18mm
ICurve type: B,C,D Type
Breakering capacity: 6000A
Optimumoperating temperature: -5°C to 40°C
Terminal-Tightening torque: 5N-m
Terminal-Capacity(top): 25mm?
Terminal-Capacity(bottom):25mm?
Electro-mechanical endurance:4000cycles
Mounting: 35mm DinRail
Suitable Busbar: PIN Busbar

Compliance

IEC60898-1
EN60898-1
