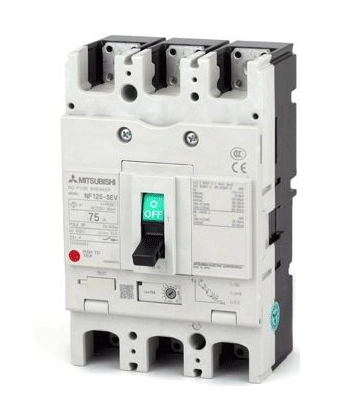

MITSUBISHI ELECTRIC S-Series Electronic Compact Switches 3 Pole NF125-SEV 3P 32-63A,
Circuit breaker 3pole. Ir = 32 – 63A; Icu = Ics = 36kA at AC 440V.
| Series | WS-V SERIES – MCCB |
|---|---|
| Type | NF-S TYPE (STANDARD CLASS) |
| Frame Size | 125 |
| Rated Current (A) | 32-63 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 690 |
| Breaking Capacity at 400V (kA) | 36/36 |
| Compliant with Standard(s) | EN 60947-2, IEC 60947-2 |
| Cycles with Rated Current | 10000 |
| Cycles without Rated Current | 25000 |
| Automatic Tripping Device | ELECTRONIC |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | LR, DNV·GL, BV, ABS, CCS |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 105 |
|---|---|
| Height (mm) | 165 |
| Depth (mm) | 92 |
| Weight (kg) | 1,7 |
Product Packaging
| Cardboard (g) | 97 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
NF125-SEV 3P 32-63A
NF125-SEV 3P 63-125A
NF250-SEV 3P 80-160A
NF250-SEV 3P 125-250A
NF400-SEW 3P 400A
NF630-SEW 3P 630A
NF800-SEW 3P 800A
NF1000-SEW 3P 1000A
NF1250-SEW 3P 1250A
NF1600-SEW 3P 1600A
