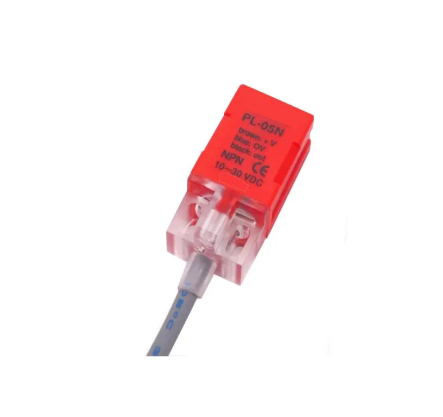

PS-05 Square proximity switch,
| Installation method | Flushed | ||
| Detection distance | 5mm | ||
| Reliable detection distance | 0-4.6mm | ||
| DC 3- wire | NPN | NO | PS-05N |
| NC | PS-05NB | ||
| PNP | NO | PS-05P | |
| NC | PS-05PB | ||
| AC 2-wire | NO | PS-05S | |
| NC | PS-05SB | ||
| Operating voltage | Dc type: 10~30 VDC | ||
| Ac type: 90~250 VAC | |||
| Power ripple | Dc type: <20% of Vp-p | ||
| Ac type: 50/60Hz | |||
| Hysteresis | Dc type: 150 mA max. | ||
| Ac type: 100mA max. | |||
| Current consumption | Dc type: 10 mA max. | ||
| Ac type: 2.0mA max. | |||
| Residual voltage | Dc type: < 0.1V | ||
| Ac type: < 15V | |||
| Leakage current | Dc type: <0.8 mA | ||
| Ac type: <4.0 mA | |||
| Hysteresis | <10% of sensing distance | ||
| Thermal drift | <10um/’℃ | ||
| Voltage drift | <1um/V | ||
| Protection circuit | Dc type: Short-circuit & Polarity reversed | ||
| Ac type: surge absorbing circuit | |||
| Operating Temperature | -25℃~+80℃ | ||
| Operating humidity | 35%~95% RH | ||
| Protection class | IP-67 | ||
| Color of sensing face | Dc type: NPN=Red ;PNP=Green | ||
| Ac type: Blue | |||
