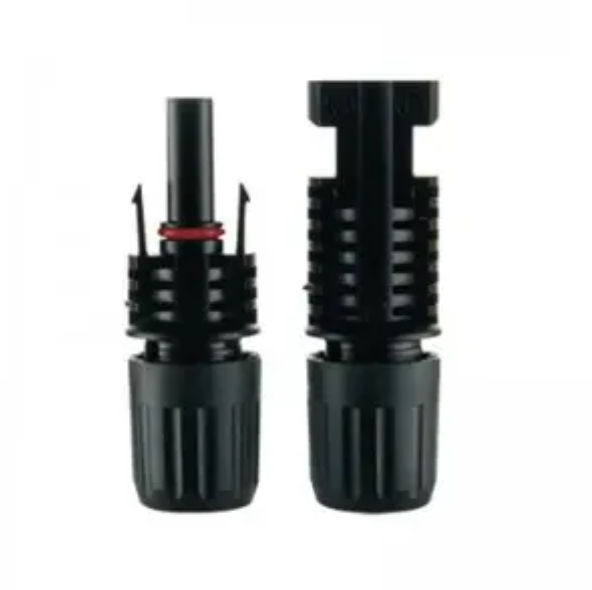

PV-LY-06 SOLAR DC CONNECTOR,
The product is made of high-quality materials that are heat-resistant, heat-resistant, wear-resistant, and non flammable
Material
Contact material: Copper Alloy,tin plated
Insulation material: PC/PV
Ambient temp.range: -40°C~+90°C(IEC)
Upper limitingtemperature: +105°C(IEC)
Degree ofprotection(mated):lP67
Degree ofprotection,unmated:lP2X
Contact resistance ofplug connectors:0.5mΩ
Lockingsystem:Snap-i
| Rated current | 30A | ||||||
| Rated voltage | 1500VDC(IEC)DC(UL) | ||||||
| Ambient temperature range | -40℃~+90℃ (ec) | ||||||
| Degree of protection | IP67 mated IP2X unmated | ||||||
| Contact resistance of plug connectors | 0.5mΩ | ||||||
| Contact material | Copper,tin plated | ||||||
| Locking system plug connectors | Snap-in (nur/only MC4) | ||||||
| Flame class | UL94-HB/UL94-VO | ||||||
| Cable size | 2.5mm², 4mm², 6mm² | ||||||
