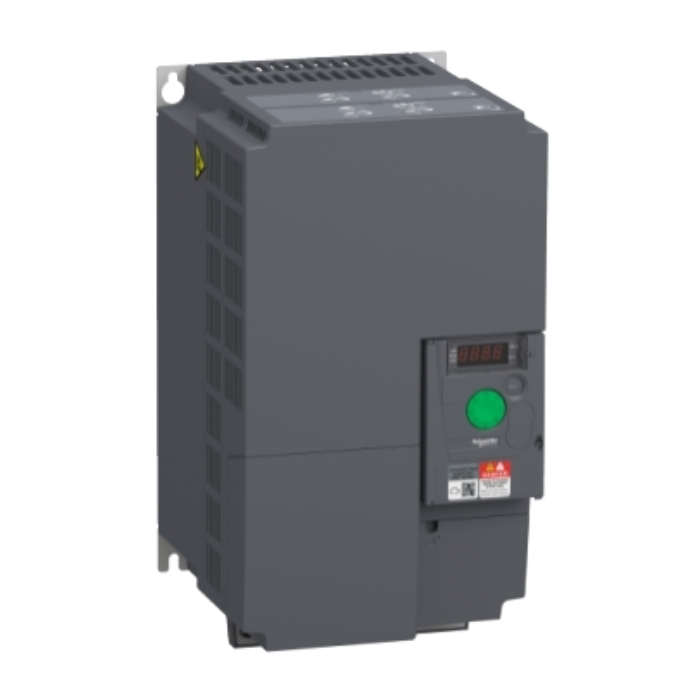

Schneider ATV310HD15N4E variable speed drive ATV310 15 kW 20 hp 380…460 V 3 phase without filter,
This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors.
Its protection index is IP20. It works at a rated power up to HD 15kW/20HP or ND 18.5KW/25HP,
and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation,
based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines.
It weighs 6.3kg and its dimensions are, 180mm wide, 330mm high, 191mm deep.
This drive incorporates functions that are suitable for the most common applications,
including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Specifications
| Range of product | Easy Altivar 310 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Assembly style | With heat sink |
| Device short name | ATV310 |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| Motor power kW | 15 kW for heavy duty 18.5 kW for normal duty |
| Motor power hp | 20 hp for heavy duty 25 hp for normal duty |
| Noise level | 50 dB |
| Quantity per set | Set of 1 |
|---|---|
| EMC filter | Without EMC filter |
| Type of cooling | Integrated fan |
| Communication port protocol | Modbus |
| Connector type | RJ45 (on front face) for Modbus |
| Physical interface | 2-wire RS 485 for Modbus |
| Transmission frame | RTU for Modbus |
| Transmission rate | 4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s |
| Number of addresses | 1…247 for Modbus |
| Communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| Line current | 46.5 A at 380 V (heavy duty) 46.6 A at 380 V (normal duty) 38.5 A at 460 V (heavy duty) 38.8 A at 460 V (normal duty) |
| Apparent power | 30.7 kVA at 460 V (heavy duty) 31.2 kVA at 460 V (normal duty) |
| Prospective line Isc | 22 kA ( heavy duty ) 5 kA ( normal duty ) |
| Continuous output current | 33 A heavy duty 36 A normal duty |
| Maximum transient current | 49.5 A during 60 s (heavy duty) 39.6 A during 60 s (normal duty) |
| Power dissipation in W | 416.0 W, at In (heavy duty) 451.7 W, at In (normal duty) |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…12 kHz adjustable |
| Speed range | 1…20 for asynchronous motor |
| Transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor |
| Braking torque | Up to 150 % of nominal motor torque with braking resistor Up to 70 % of nominal motor torque without braking resistor |
| Asynchronous motor control profile | Voltage/frequency ratio (V/f) Voltage/frequency ratio – Energy Saving, quadratic U/f Sensorless vector control (SVC) |
| Motor slip compensation | Adjustable |
| Output voltage | 380…460 V three phase |
| Electrical connection | Terminal, clamping capacity: 16…25 mm², 4 AWG…3 AWG (L1, L2, L3, PA/+, PB, U, V, W) |
| Tightening torque | 2.2…2.4 N.m |
| Insulation | Electrical between power and control |
| Supply | Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
| Analogue input number | 1 |
| Analogue input type | Configurable current AI1 0…20 mA 250 Ohm Configurable voltage AI1 0…10 V 30 kOhm Configurable voltage AI1 0…5 V 30 kOhm |
| Discrete input number | 4 |
| Discrete input type | Programmable LI1…LI4 24 V 18…30 V |
| Discrete input logic | Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm Positive logic (source), 0…< 5 V (state 0), > 11 V (state 1) |
| Sampling duration | 10 ms for analogue input 20 ms, tolerance +/- 1 ms for logic input |
| Linearity error | +/- 0.3 % of maximum value for analogue input |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable voltage: 0…10 V AC 0…10 V 0…0.02 A, impedance: 470 Ohm, resolution 8 bits AO1 software-configurable current: 0…20 mA, impedance: 800 Ohm, resolution 8 bits |
| Discrete output number | 2 |
| Discrete output type | Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O |
| Minimum switching current | 5 mA at 24 V DC for logic relay |
| Maximum switching current | 2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay 2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay 3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay 4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Acceleration and deceleration ramps | Linear from 0…999.9 s S U |
| Braking to standstill | By DC injection, <30 s |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| Frequency resolution | Analog input: converter A/D, 10 bits Display unit: 0.1 Hz |
| Time constant | 20 ms +/- 1 ms for reference change |
| Operating position | Vertical +/- 10 degree |
| Height | 330 mm |
| Width | 180 mm |
| Depth | 191 mm |
| Net weight | 6.3 kg |
| Supply frequency | 50/60 Hz +/- 5 % |
| Product destination | Asynchronous motors |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test – test level: level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test – test level: level 3 conforming to IEC 61000-4-2 Immunity to conducted disturbances – test level: level 3 conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test – test level: level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Surge immunity test – test level: level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards | IEC 61800-5-1 |
| Product certifications | CE EAC KC |
| IP degree of protection | IP20 without blanking plate on upper part IP4X top |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Environmental characteristic | Dust pollution resistance class 3S2 conforming to IEC 60721-3-3 Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn conforming to IEC 60068-2-27 for 11 ms |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | -10…55 °C without derating 55…60 °C protective cover from the top of the drive removed with current derating 2.2 % per °C |
| Operating altitude | <= 1000 m without derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.100 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 33.000 cm |
| Package 1 Weight | 7.600 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 66.000 kg |
| Warranty (in months) | 18 |
|---|
