Schneider Duct Temperature Sensors STD150 5123058000
The STD150 is intended for measuring air temperature in fan coil applications
or exhaust ducts.

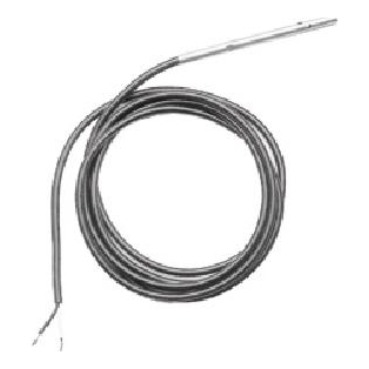

The sensors, which are made of stainless steel, are delivered with a 2 m
(6.5 ft.) cable, PVC sheathed overall. Mounting details such as screw and
clamp are included with the product.
Accuracy: See Appendix A, table A
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A

Specifications

Main
Range of product	STD150
Product or component type	Sensor
Type of measurement	Temperature
IP degree of protection	IP20
Product weight	0.09 kg

Complementary
Material	PVC (polyvinyl chloride): cable Stainless steel: sensor
Time constant	25000 ms 3 l/min

Environment
Temperature probe type	NTC 1800 Ohm at 25 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.300 cm
Package 1 Width	6.500 cm
Package 1 Length	14.000 cm
Package 1 Weight	94.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	12
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	1.643 kg
