Schneider SPD910 pressure switch sensor – 20…300 Pa SPD910-300Pa 004701060

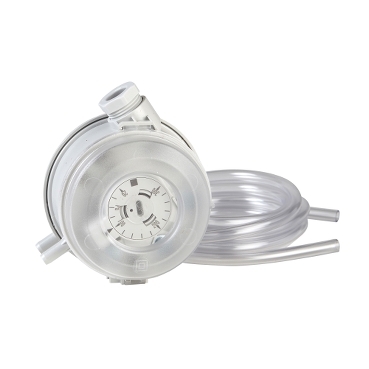

SPD910 is a relative and differential pressure switch suitable for use with
air and neutral gases, for the monitoring of air ducts, filters and fans within
ventilation systems.
Available in 4 models to cover a range from 20 … 2000 Pa with high
adjustment accuracy. Each model has an adjustable dial with clearly marked
individual scale for easy adjustment of the swtiching set-point.
Supplied complete with 2 m (6.56 ft.) clear tubing plus 2 plastic pipe duct
connectors and screws.
Calibration certificates: See Appendix B
004701070 SPD910-500Pa
004701080 SPD910-1000Pa
004701090 SPD910-2000Pa

Specifications

Head
range of product	SPD910
product or component type	Pressure sensor with transmitter
type of measurement	Differential pressure
device application	Check pump and compressor
analog output type	Switch output
Cross-section of bar system	20″ WC (5 kPa)
product certifications	CE
controlled fluid	Air Inert gas
Suitable size	6.2 mm (0.24″)
Type of confirmation	Male
IP protection degree	IP54
location	Installation space
mounting support	Pipe
product weight	0.93 kg
Pressure allowed static	+/- 0.1″ WC (25 Pa)
Nominal pressure	0.08…1.2″ WC (20…300 Pa)
ambient air temperature for operation	-30…85 °C
ambient air temperature for storage	-40…85 °C
wiring technology	3-wire
standards	ETL CE 73/23/EWG DIN 1854 90/396/EWG CE 0085 A P0918
Calibration certificate	Temperature: None
Our nominal supply voltage	250 V AC
target country	Middle East and Africa. Asia and the Pacific.

Complementary
cable gland type	Pg 11
measuring range	20…300 Pa
mounting mode	Pipe Panel
material	PC 10% GF: bag PC: hood Silicon: diaphragm PC: mounting
nominal voltage	250 V AC inductive 0.8 A 250 V AC resistive 5 A 30 V DC inductive 0.7 A 30 V DC resistive 4 A
output type	Switch output 3-wire
electrical connection	Screw terminal block
display type	Dial

Packaging unit
Unit type of packaging 1	PCE
Number of units in package 1	1
packaging_1_height	17 cm
packaging_1_width	15.2 cm
packaging_1_length	5.6 cm
packaging_1_weight	200 g
Unit type of packaging 2	CAR
Number of units in package 2	50
Package 2 Height	59 cm
Package 2 Width	40.2 cm
packaging_2_length	36.8 cm
packaging_2_weight	10.54 kg
